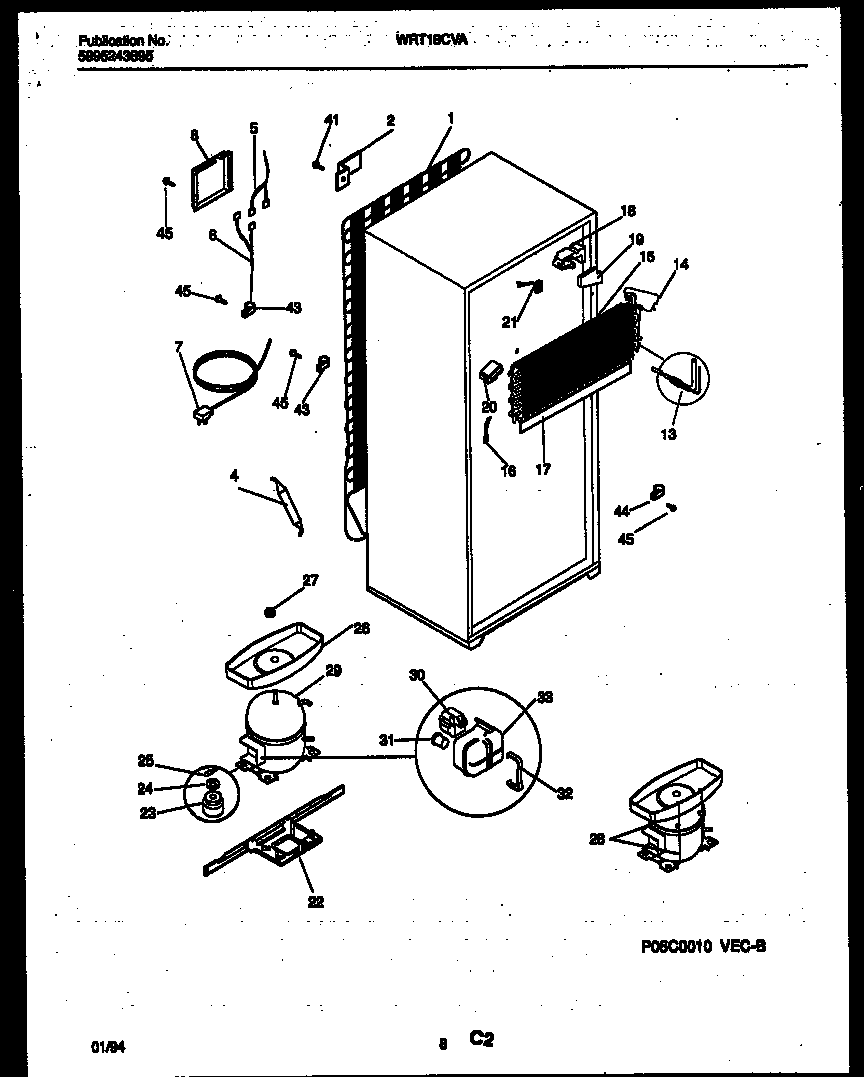

WRT18CVAD0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

WRT18CVAD0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

WRT18CVAD0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*85361HOT TUBE REPAIR KIT, SERVICE (NI)
1WCI 5308009770
1A5303017691 Frigidaire Refrigerator Spacer-Tube
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
6HARNESS-WIRING, COMPRESSOR
7CORD-ELECTRIC POWER
8AWASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
8WCI 5303001197
8BNUT, 8-32 HEX, (2) (NI)
8DBRACKET, GROUNDING (NI)
8CCONNECTOR PLUG, RH (NI)
13WCI 215133500
14WCI 5303275246
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303207493
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22A5304500008 Frigidaire Oven Screw
22WCI 3206126
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26PAN-DEFROST DRAIN, ORIG/SVCE COMPR
26A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29WCI 5303916804
30WCI 5303211376
31WCI 5303270973
325303006412 Frigidaire Refrigerator Cover Mounting Strap
415308000039 Frigidaire Refrigerator Screw
43CLAMP, SERVICE CORD, ALUMINUM, W/ INSULATOR
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455852 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
