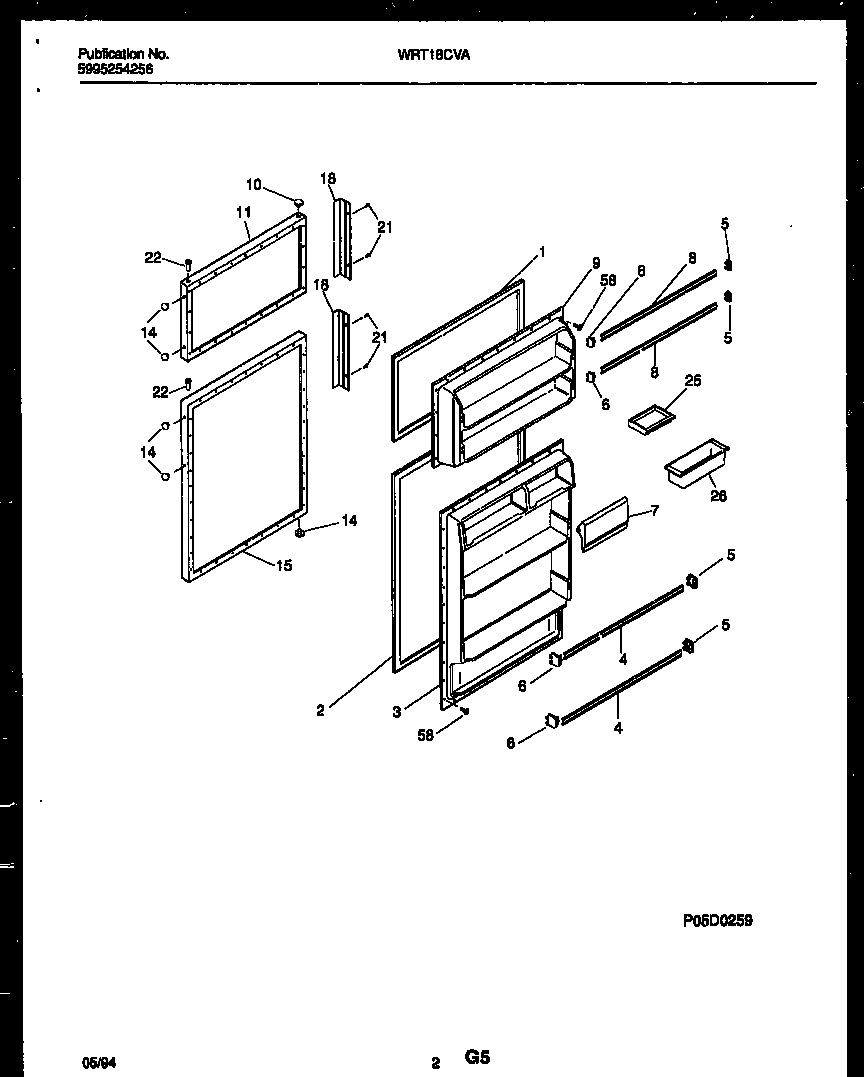

WRT18CVAD1 02 – DOOR PARTS

Products

PositionProduct
*96879INSULATION
1GASKET-FRZR DOOR, BROWN, MAGNETIC
2GASKET-REFR DOOR, BROWN, MAGNETIC
3WCI 5303206569
4WCI 5303281387
5WCI 5303007295
6WCI 5303007297
7WCI 5303300066
8WCI 5303288345
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 3916395
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE
18WCI 215164904
21SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22BEARING-HINGE
255308000716 Frigidaire Refrigerator Dish
26WCI 3204522
585304455651 Frigidaire Refrigerator Screw
