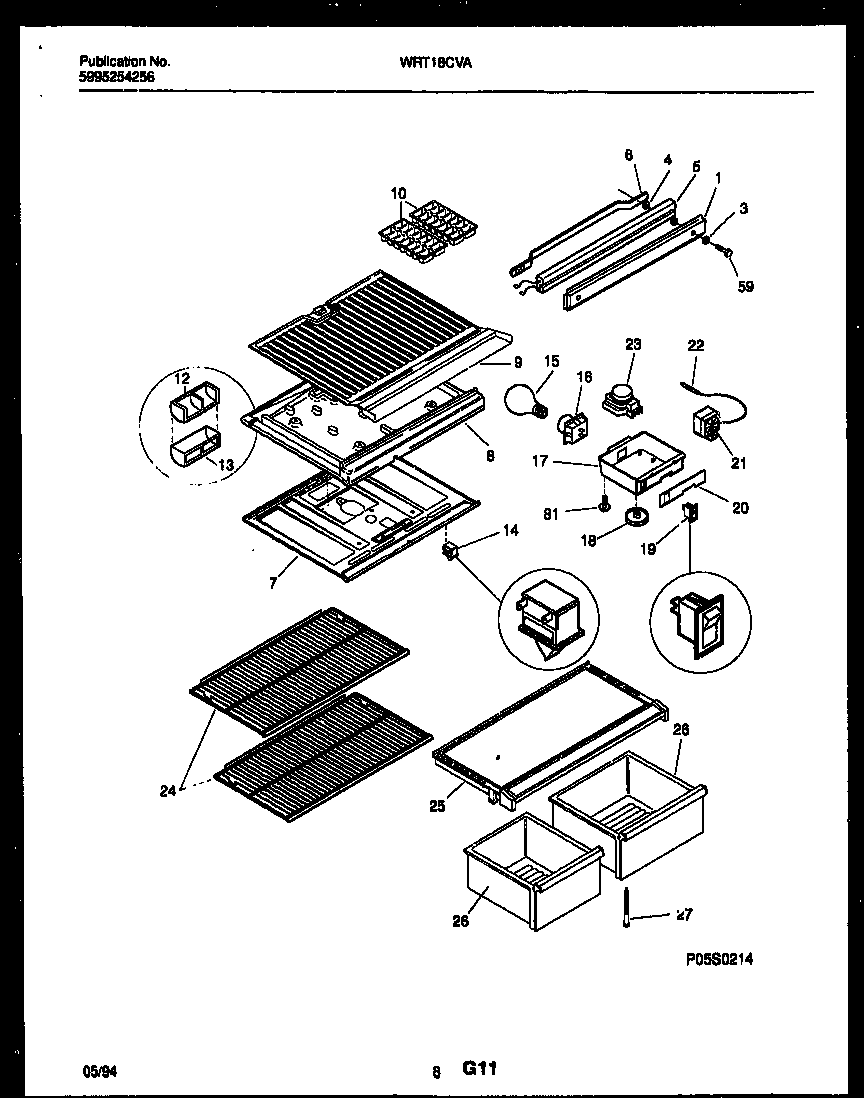

WRT18CVAD1 05 – SHELVES AND SUPPORTS

WRT18CVAD1 05 – SHELVES AND SUPPORTS

Written by

in

WRT18CVAD1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 218188100
5WCI 215425900
6WCI 5308010008
7BWCI 5303001380
7ABUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP PANEL-REFR, W/SNAP BUSHING
8AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8DIVIDER, STYROFOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15218814402 Frigidaire Refrigerator Bulb-Lamp
16WCI 215752300
17ANUT, ANCHOR (NI)
17WCI 5303300988
18WCI 5303304535
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21AWCI 5303001260
21WCI 5303200810
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23WCI 215945900
24AWCI 5303283297
24SHELF, SLIDING WIRE
25WCI 5308010006
26PAN-CRISPER, 14.35“ WIDE
26PAN-CRISPER, 11.35“ WIDE
27SUPPORT-CRISPER CVR, ADJUSTABLE
59WCI 215097000
815304455650 Frigidaire Refrigerator Screw
