WRT18CVAD2 02 – DOOR

WRT18CVAD2 02 – DOOR

Written by

in

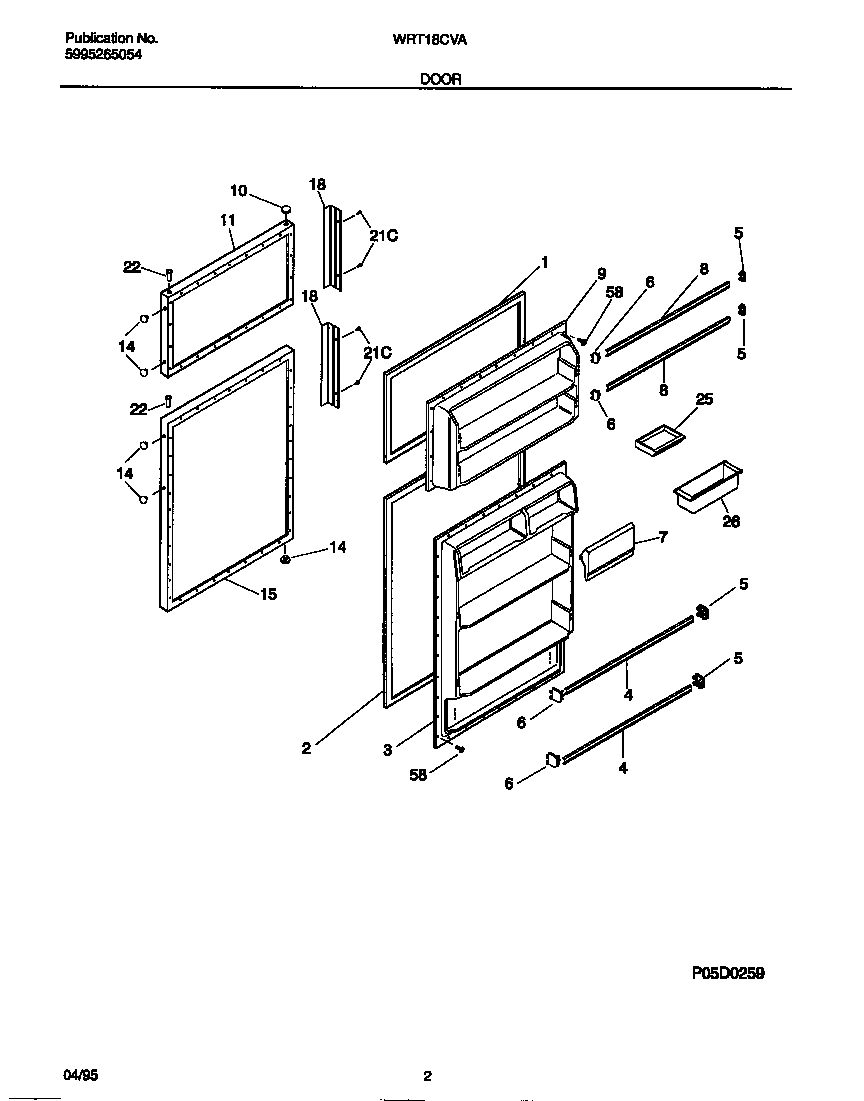

WRT18CVAD2 02 – DOOR

Products

PositionProduct
*17480INSULATION
1GASKET-FRZR DOOR, BROWN, MAGNETIC
2GASKET-REFR DOOR, BROWN, MAGNETIC
3WCI 5303206569
4WCI 5303281387
5WCI 5303007295
6WCI 5303007297
7WCI 5303300066
8WCI 5303288345
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 3916395
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE
18WCI 215164904
21218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
255308000716 Frigidaire Refrigerator Dish
26WCI 3204522
585304455651 Frigidaire Refrigerator Screw
