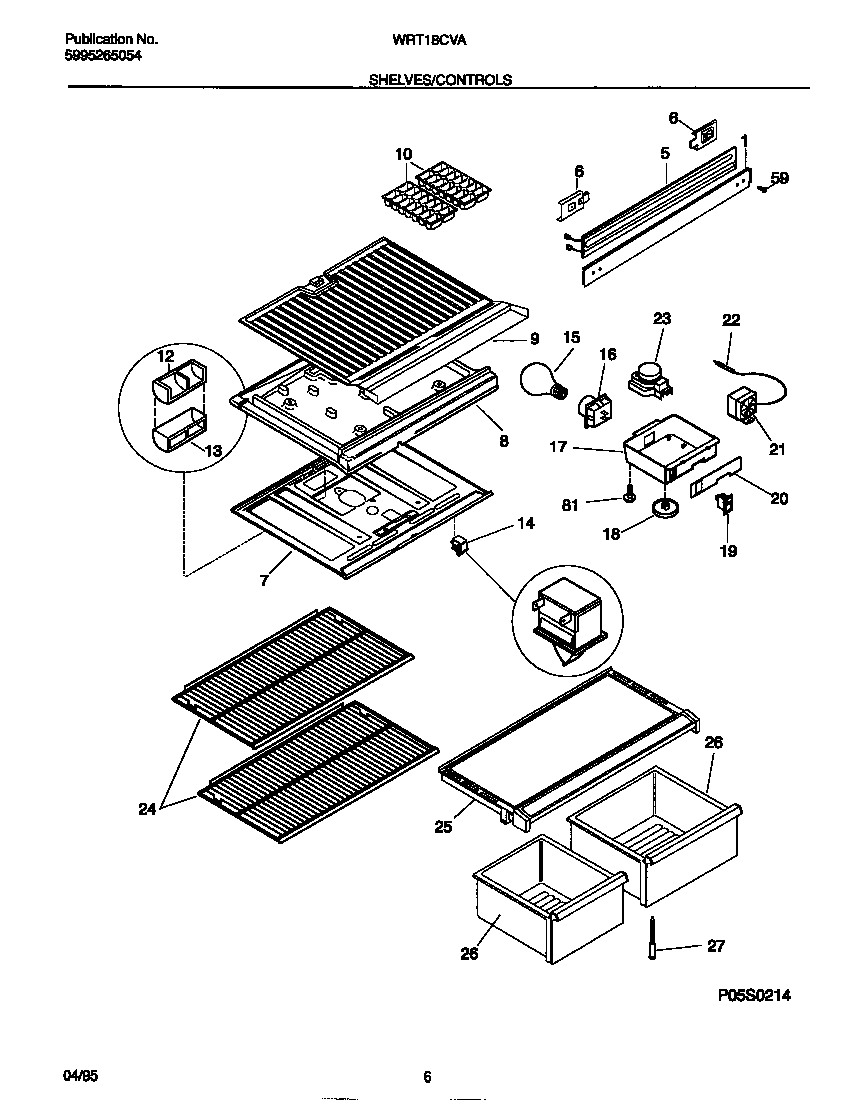

WRT18CVAD2 04 – SHELVES/CONTROLS

Products

Position	Product
1	WCI 218252504
5	WCI 218271602
6	WCI 218279800
7B	BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7C	WCI 5303001380
7A	TOP PANEL-REFR, W/SNAP BUSHING
8A	DIVIDER, STYROFOAM
8B	HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9	WCI 5303211427
10	215667501 Frigidaire Refrigerator Ice Tray Primary
12	DEFLECTOR-AIR
13	COVER – AIR DEFLECTOR
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	218814402 Frigidaire Refrigerator Bulb-Lamp
16	WCI 215752300
17B	NUT, ANCHOR (NI)
17A	WCI 5303015152
18	WCI 5303304535
19	SWITCH-ENERGY SAVER, SLIDE TYPE
20	WCI 215611400
21A	WCI 5303200810
21B	WCI 5303001260
22	TUBE
23B	5304455649 Frigidaire Refrigerator Screw
23A	WCI 215945900
24A	SHELF, SLIDING WIRE
24B	WCI 5303283297
25	WCI 5308010006
26A	PAN-CRISPER, 14.35“ WIDE
26B	PAN-CRISPER, 11.35“ WIDE
27	SUPPORT-CRISPER CVR, ADJUSTABLE
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	5304455650 Frigidaire Refrigerator Screw
