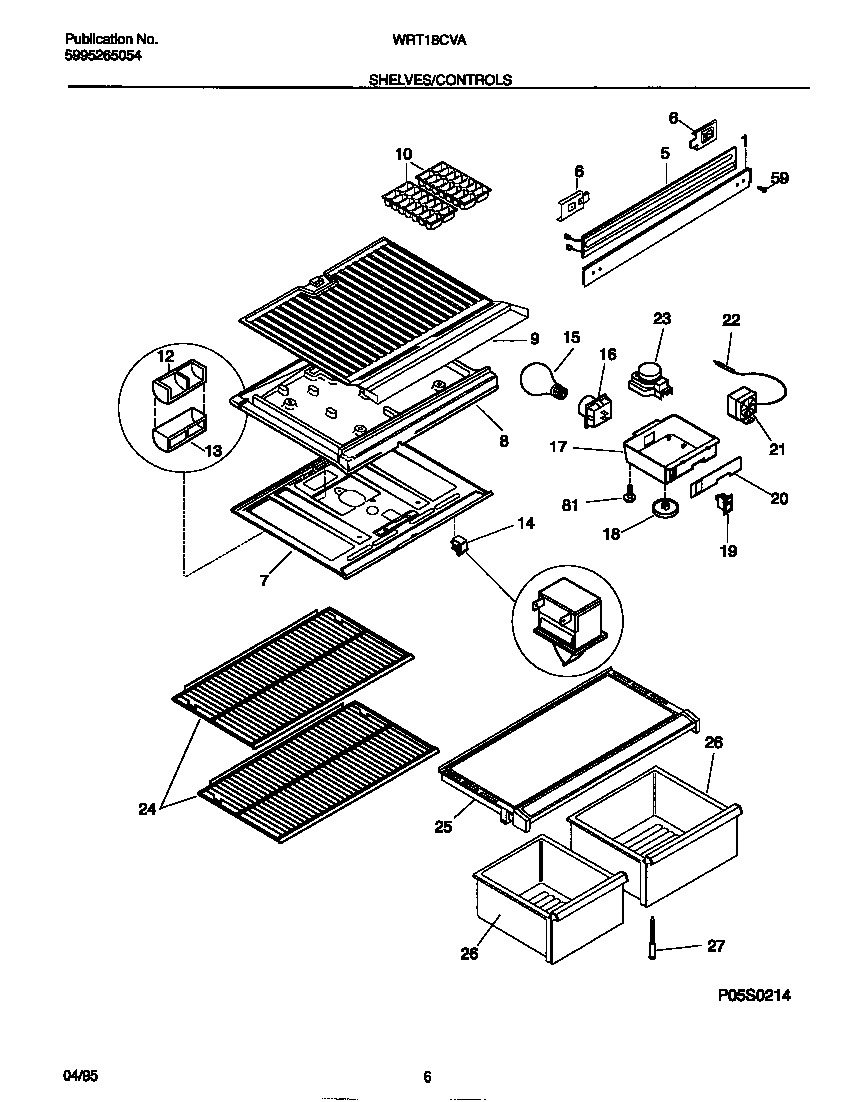

WRT18CVAW2 04 – SHELVES/CONTROLSadmin2025-04-26T08:45:36+00:00WRT18CVAW2 04 – SHELVES/CONTROLS
Products
| Position | Product |
|---|
| 1 | WCI 218252503 |
| 5 | WCI 218271602 |
| 6 | WCI 218279800 |
| 7B | BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED) |
| 7A | TOP PANEL-REFR, W/SNAP BUSHING |
| 7C | WCI 5303001380 |
| 8B | HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED) |
| 8A | DIVIDER, STYROFOAM |
| 9 | WCI 5303211427 |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 12 | DEFLECTOR-AIR |
| 13 | COVER - AIR DEFLECTOR |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 218814402 Frigidaire Refrigerator Bulb-Lamp |
| 16 | WCI 215752300 |
| 17B | NUT, ANCHOR (NI) |
| 17A | WCI 5303015152 |
| 18 | WCI 5303304535 |
| 19 | SWITCH-ENERGY SAVER, SLIDE TYPE |
| 20 | WCI 215611400 |
| 21A | WCI 5303200810 |
| 21B | WCI 5303001260 |
| 22 | TUBE |
| 23A | WCI 215945900 |
| 23B | 5304455649 Frigidaire Refrigerator Screw |
| 24B | WCI 5303283297 |
| 24A | SHELF, SLIDING WIRE |
| 25 | WCI 5308010006 |
| 26A | PAN-CRISPER, 14.35`` WIDE |
| 26B | PAN-CRISPER, 11.35`` WIDE |
| 27 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 59 | 240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
