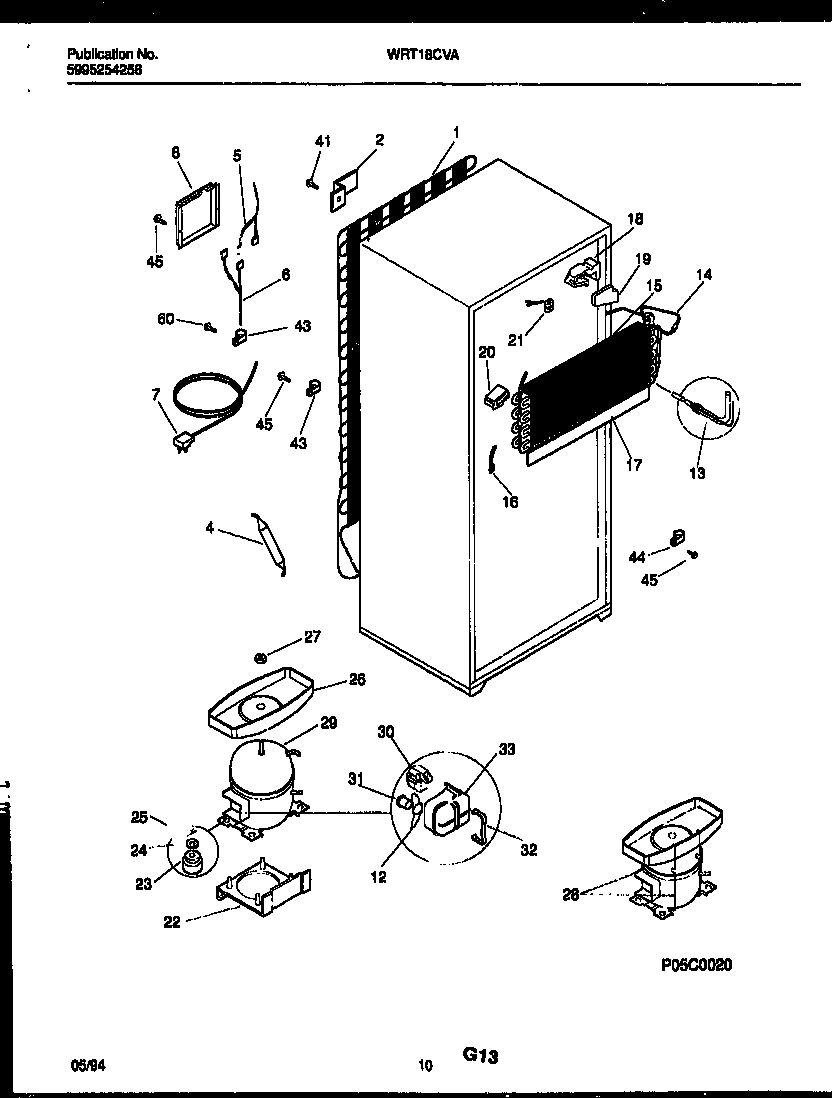

WRT18CVAY1 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*96896	HOT TUBE REPAIR KIT, 220 V, SERVICE
1	WCI 5308009770
1A	5303017691 Frigidaire Refrigerator Spacer-Tube
2A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
6	WCI 5303294037
7	WCI 5303294039
8	WCI 5303294036
8C	BRACKET, GROUNDING (NI)
8E	NUT, 8-32 HEX, (2) (NI)
8D	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
8B	WCI 5303294041
8A	CONNECTOR PLUG, RH (NI)
12	CLIP-OVERLOAD
13	WCI 5308000728
14	WCI 215425300
15	EVAPORATOR
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	INSULATION BLOCK, RH
19	INSULATION PLUG, RH
20	INSULATION BLOCK, LH
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5308013663
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP – COMPRESSOR MTG
26	PAN-DEFROST DRAIN, ORIG/SVCE COMPR
26A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	WCI 5303916804
30	WCI 5303211376
31	WCI 5303270973
32	5303006412 Frigidaire Refrigerator Cover Mounting Strap
41	5308000039 Frigidaire Refrigerator Screw
43	WCI 5303207327
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455651 Frigidaire Refrigerator Screw
45	WCI 5303207199
45	5304455852 Frigidaire Refrigerator Screw
