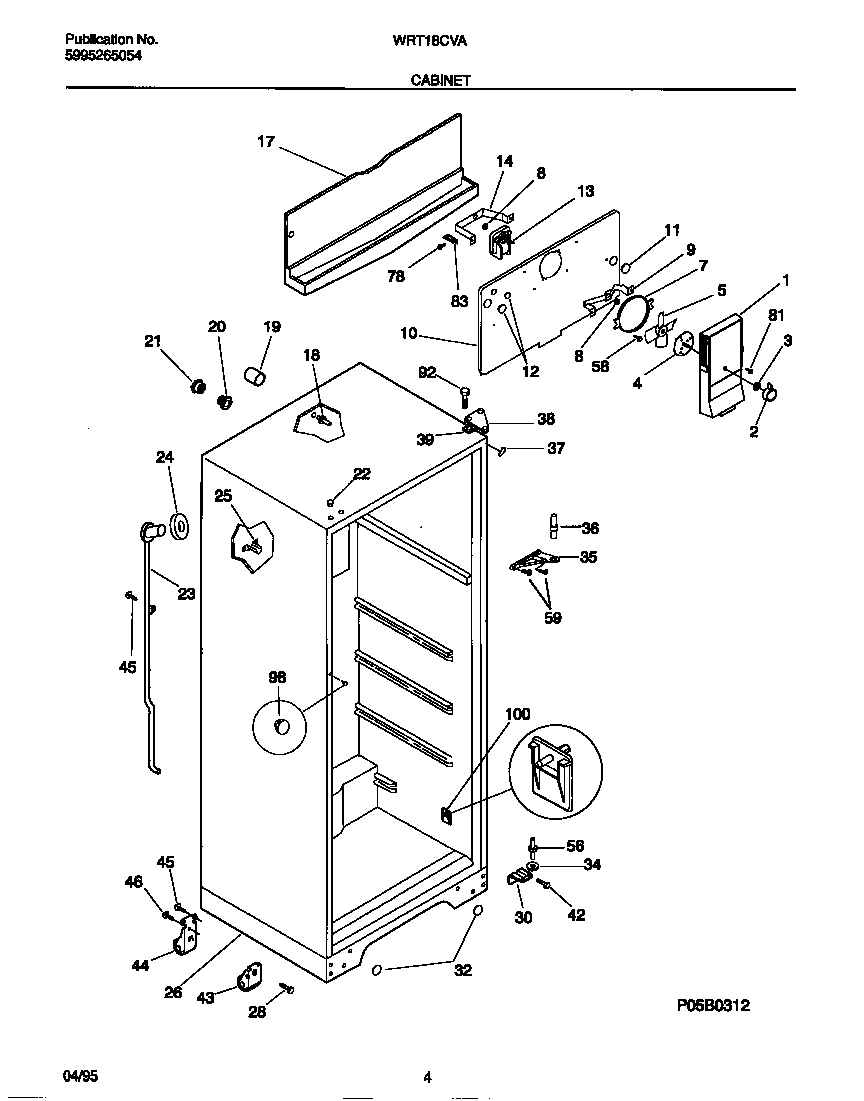

WRT18CVAZ2 03 – CABINET

WRT18CVAZ2 03 – CABINET

Written by

in

WRT18CVAZ2 03 – CABINET

Products

PositionProduct
*17481PLUG, BUTTON, CABINET LINER (NI)
*174835303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 5303299977
2WCI 5308000081
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10AWCI 5308009771
10BWCI 5303209636
115303208309 Frigidaire Refrigerator Plug Hole
12BWCI 215079100
12AWCI 215079000
13WCI 5303210356
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
23WCI 5303210377
24WCI 5303207353
25BWCI 5303001361
25AWCI 5308000056
26WCI 5303212487
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
30AWCI 218220200
30BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30CTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
32WCI 5303212923
34WASHER, .28 X .62 X .19, NYLON
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, WHITE
38ABRACKET-UPPER HINGE
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM – UPPER HINGE
42241710601 Frigidaire Refrigerator Screw
43WCI 5303212490
44WCI 5308009773
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98215099701 Frigidaire Refrigerator Button Plug
100SUPPORT-PAN COVER
