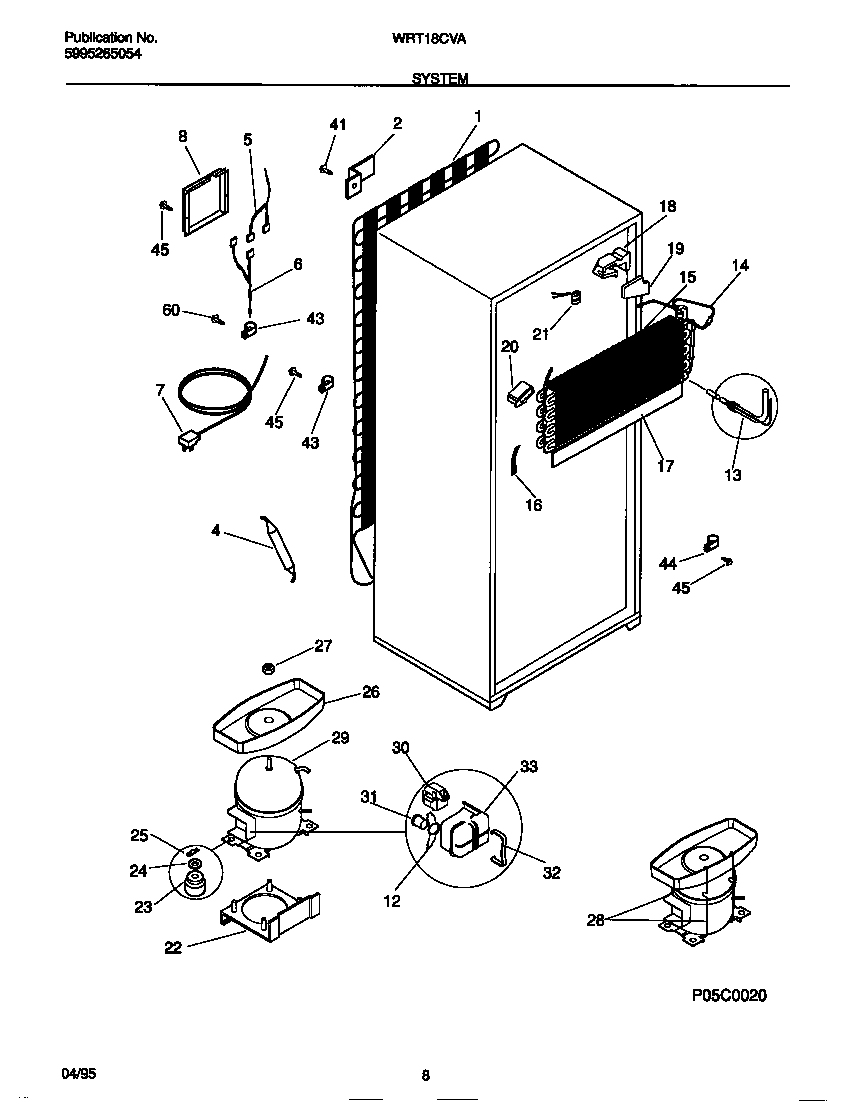

| *17484 | HOT TUBE REPAIR KIT, 220 V, SERVICE |
| 1B | 5303017691 Frigidaire Refrigerator Spacer-Tube |
| 1A | WCI 5308009770 |
| 2A | BRACKET, MOUNTIN, CONDENSER, (4) |
| 2B | WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED) |
| 4 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 5 | HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED) |
| 6 | WCI 5303294037 |
| 7 | WCI 215983803 |
| 8D | WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED) |
| 8E | NUT, 8-32 HEX, (2) (NI) |
| 8C | BRACKET, GROUNDING (NI) |
| 8A | WCI 5303294036 |
| 8B | CONNECTOR PLUG, RH (NI) |
| 12 | CLIP-OVERLOAD |
| 13 | WCI 5308000728 |
| 14 | WCI 215425300 |
| 15 | EVAPORATOR |
| 16 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 17 | INSULATOR-EVAP, PLASTIC |
| 18 | INSULATION BLOCK, RH |
| 19 | INSULATION PLUG, RH |
| 20 | INSULATION BLOCK, LH |
| 21 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 22 | WCI 5308013663 |
| 23 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 24 | WASHER-COMPR MTG |
| 25 | CLIP - COMPRESSOR MTG |
| 26A | WCI 215372500 |
| 26B | 5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction |
| 27 | Nut,lock `1/4-20 ,drain pan mtg |
| 28 | PAN RETAINER KIT, SERVICE |
| 29 | WCI 5303916804 |
| 30 | WCI 5303211376 |
| 31 | WCI 5303270973 |
| 32 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 41 | 5308000039 Frigidaire Refrigerator Screw |
| 43B | WCI 5303207327 |
| 43A | 5303001199 Frigidaire Refrigerator Wiring Harness Clamp |
| 44 | 5308000133 Frigidaire Refrigerator Clamp |
| 45B | WCI 5303207199 |
| 45A | 5304455852 Frigidaire Refrigerator Screw |
