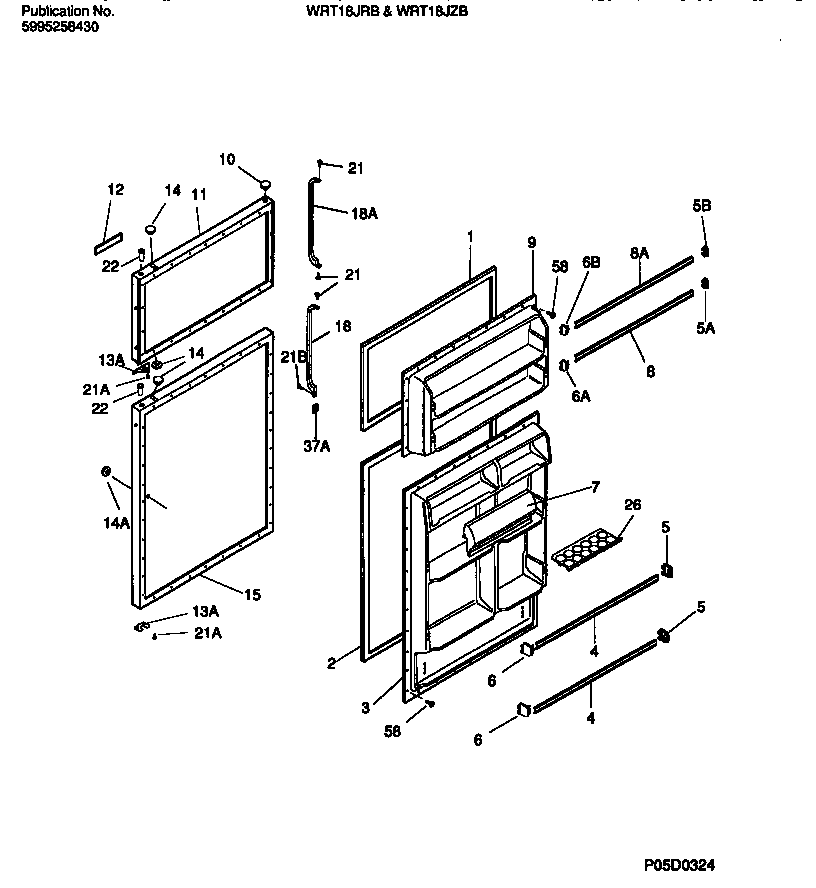

WRT18JRBD1 02 – DOOR SECTIONadmin2025-04-26T08:41:07+00:00WRT18JRBD1 02 – DOOR SECTION
Products
| Position | Product |
|---|
| *25360 | INSULATION |
| 1 | WCI 215608906 |
| 2 | 5303207345 Frigidaire Refrigerator Door Gasket |
| 3 | WCI 5303300061 |
| 4 | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 5A | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 5 | WCI 3206150 |
| 5B | 3206165 Frigidaire Bar Endcap Right Hand |
| 6A | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 6B | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 6 | WCI 3206151 |
| 7 | WCI 5303304765 |
| 8A | WCI 215806317 |
| 9 | WCI 5303295730 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | WCI 5303917314 |
| 12A | WCI 215220310 |
| 12B | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC |
| 12B | TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED) |
| 12 | WCI 215490711 |
| 13A | WCI 530800255 |
| 13A | WCI 218249002 |
| 14A | WCI 215352211 |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 18 | WCI 215915543 |
| 18A | WCI 215915541 |
| 21 | SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND, |
| 21B | 154518001 Frigidaire Refrigerator Screw |
| 21B | 218252201 Frigidaire Refrigerator Screw |
| 21A | SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED |
| 22 | BEARING-HINGE |
| 26 | 215817806 Frigidaire Refrigerator Egg Tray |
| 37A | WCI 215480204 |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
