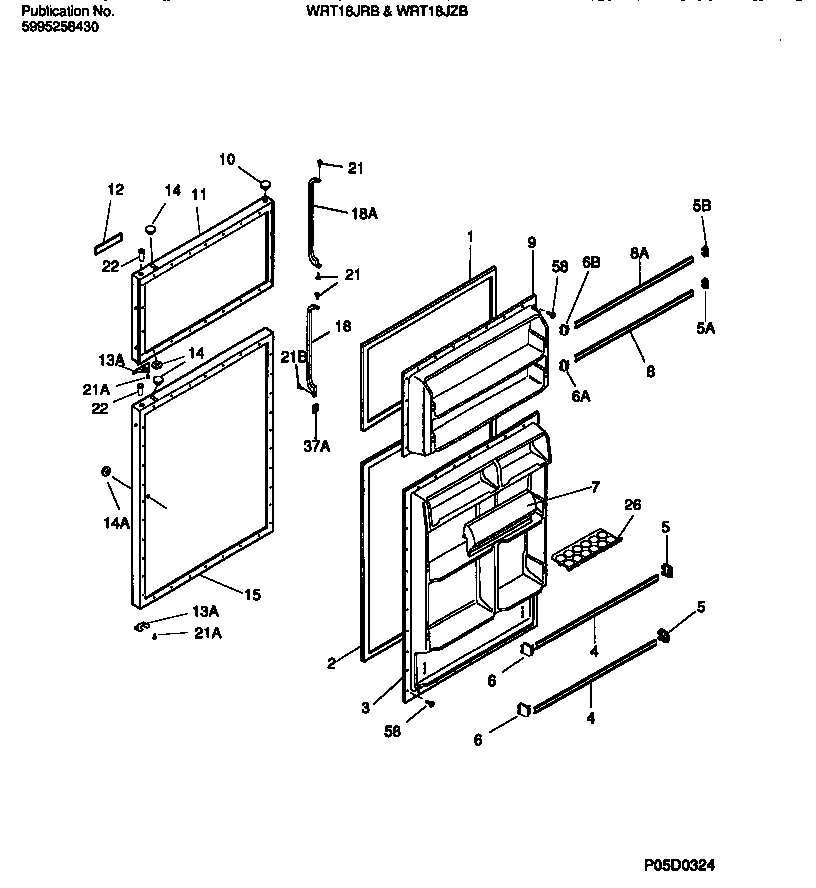

WRT18JRBW1 02 – DOOR SECTION

WRT18JRBW1 02 – DOOR SECTION

Written by

in

WRT18JRBW1 02 – DOOR SECTION

Products

PositionProduct
*25360INSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 5303300061
4215366002 Frigidaire Refrigerator Door Wide Rack
5ASUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5B3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
6WCI 3206151
6B3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6ASUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303304765
8AWCI 215806317
9WCI 5303295730
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917309
12WCI 215490701
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12AWCI 215220301
13AWCI 218249001
13AWCI 530800255
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917360
15WCI 5303917359
18AWCI 215915537
18WCI 215915539
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B154518001 Frigidaire Refrigerator Screw
21B218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480205
585304455651 Frigidaire Refrigerator Screw
