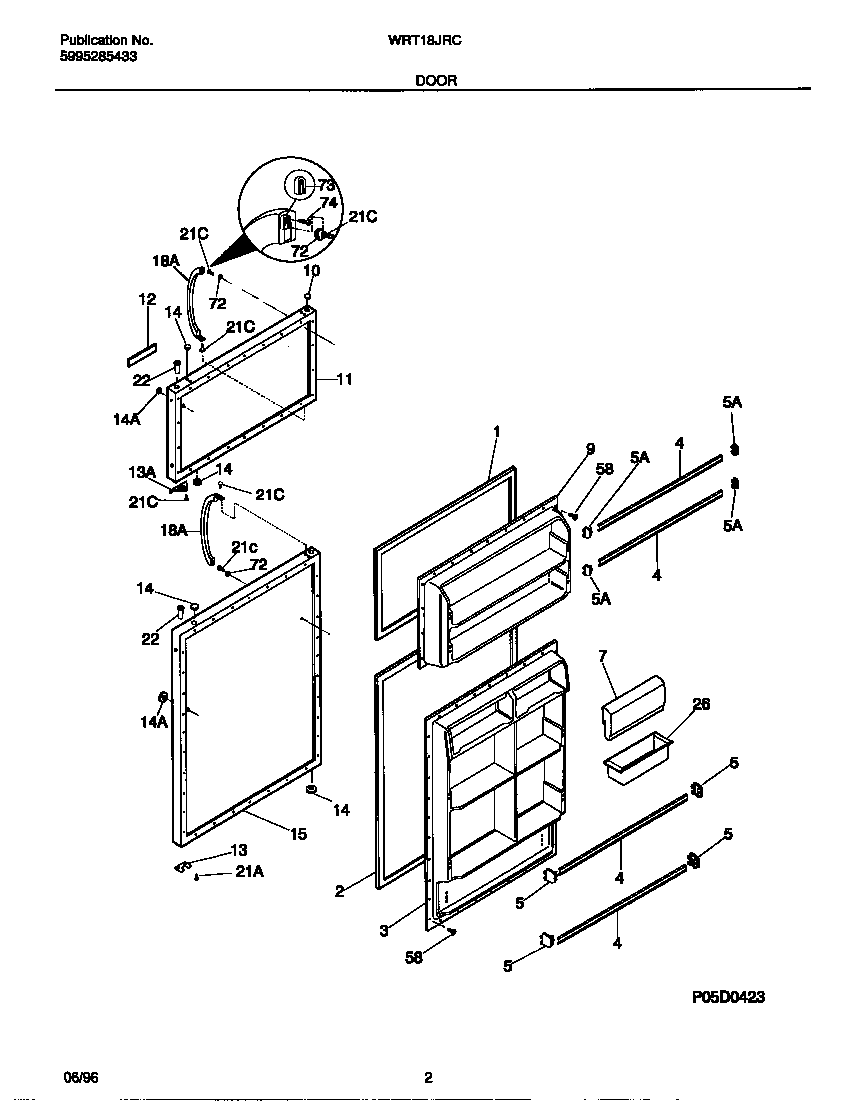

WRT18JRCD1 02 – DOOR

WRT18JRCD1 02 – DOOR

Written by

in

WRT18JRCD1 02 – DOOR

Products

PositionProduct
*94800INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 218287813
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917574
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 218409402
12WCI 215220339
13WCI 218249002
13WCI 5308000255
14PLUG-BUTTON, ALMOND, REFR DOOR FRONT, UPPER
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917576
18WCI 218428102
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
58216858001 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
