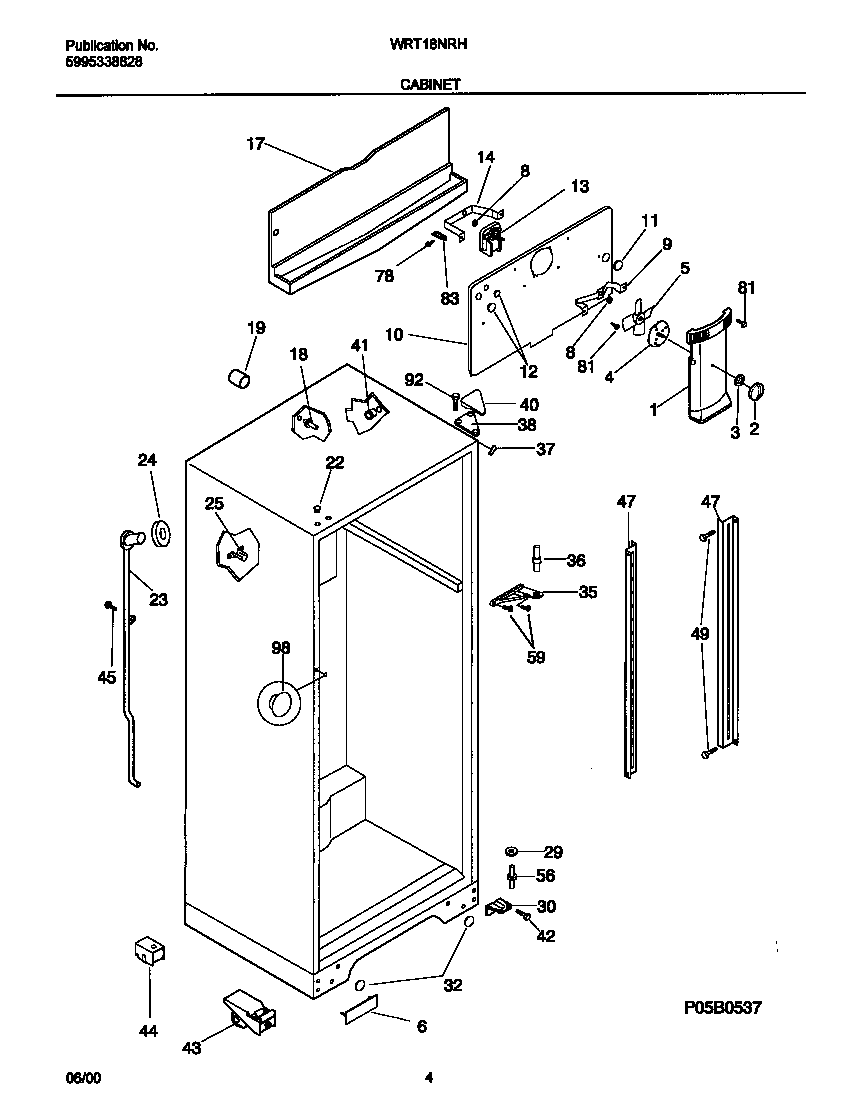

WRT18NRHD1 03 – CABINET

WRT18NRHD1 03 – CABINET

Written by

in

WRT18NRHD1 03 – CABINET

Products

PositionProduct
*23486TAPPING PLATE, LOWER HINGE, (2) (NI)
*23492WCI 5308009790
*23494TOUCH, UP PAINT, ALMOND (NI)
*23495PLUG, BUTTON, CABINET LINER (NI)
*23490WCI 5308000186
*23487SHIM, LOWER HINGE (NI)
*23489WCI 218703002
*23491BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
*234885304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448302
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218991001
115303208309 Frigidaire Refrigerator Plug Hole
12BWCI 215079100
12AWCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 218725700
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29AWASHER, .34 X .62 X .05, NYLON
29BWCI 5308011326
30WCI 5303917777
32PLUG-BUTTON, ALMOND, CABINET BASE
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321082
38WCI 3206100
40WCI 3206105
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 218724000
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
49218362501 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
