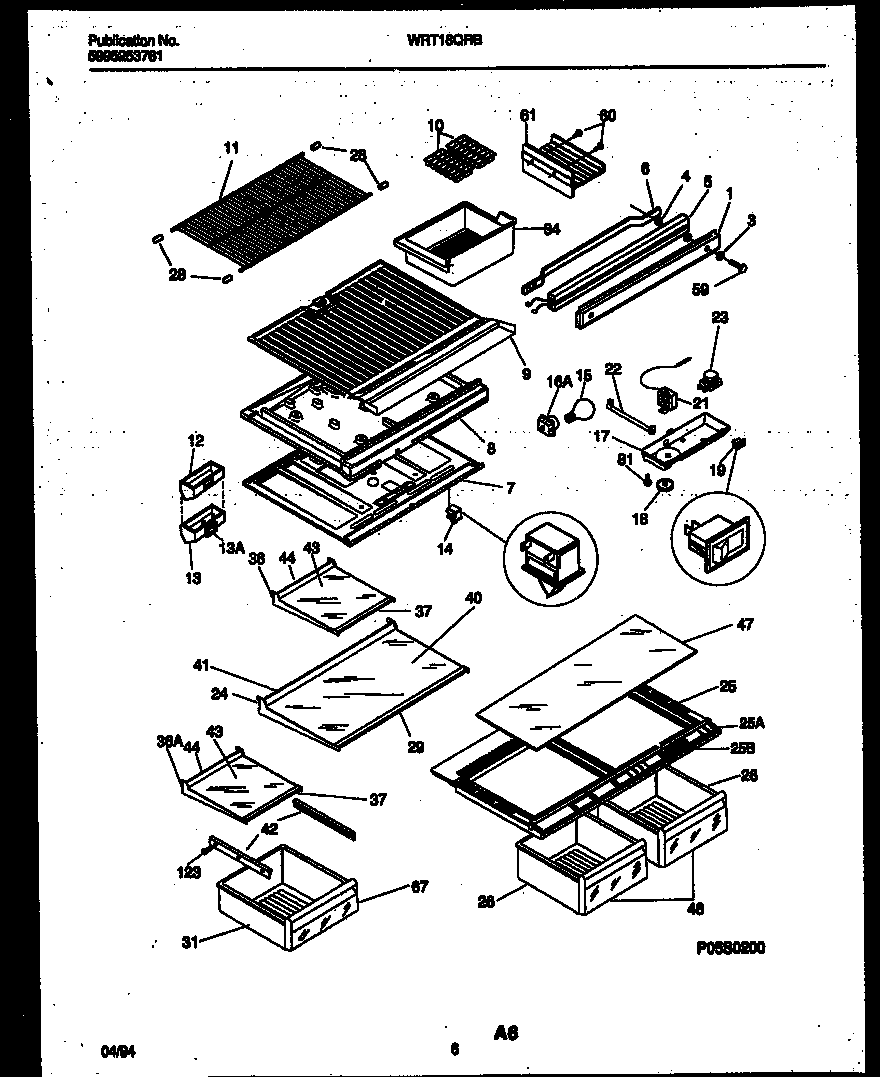

WRT18QRBD0 04 – SHELVES AND SUPPORTS

WRT18QRBD0 04 – SHELVES AND SUPPORTS

Written by

in

WRT18QRBD0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*93778CLIP-CANTILEVER SHLF
1WCI 3206450
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 215882100
5WCI 3206445
6WCI 215170802
7AWCI 5303001380
7WCI 3206454
8WCI 3206456
8BWCI 3018900
8A3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF, FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 215919130
25B5303307715 Frigidaire Refrigerator Humidity Control
25AWCI 5303299930
25WCI 215681400
263206438 Frigidaire Refrigerator Crisper Pan
28END CAP-SHELF,PROTECTOR
29WCI 215919703
31WCI 3206209
345303212918 Frigidaire Refrigerator Cont
36AWCI 215919131
36WCI 215919129
37WCI 215919709
40WCI 215723527
41WCI 215919803
42AWCI 5303298210
42WCI 5303298209
43WCI 215723528
44TRIM-GLASS SHELF, 12.13“, REAR
46WCI 5303304769
47INSERT-PAN COVER, GLASS
59WCI 5308012258
605304455852 Frigidaire Refrigerator Screw
61WCI 215781501
67WCI 5303303765
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
