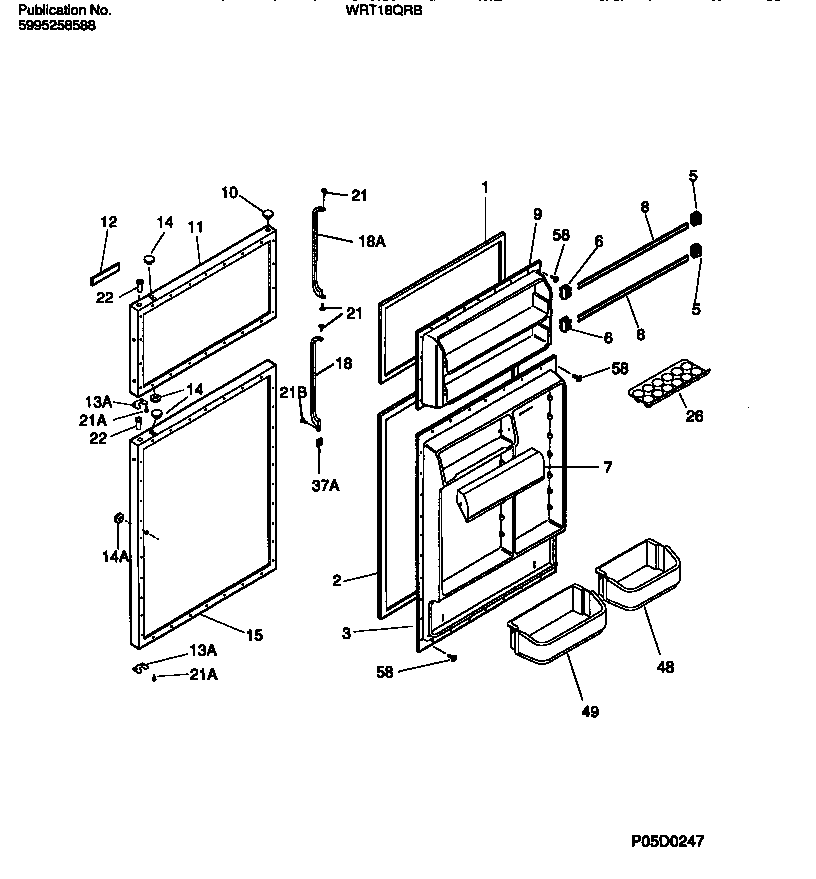

WRT18QRBD1 02 – DOOR SECTION

WRT18QRBD1 02 – DOOR SECTION

Written by

in

WRT18QRBD1 02 – DOOR SECTION

Products

PositionProduct
*27160INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 215484101
5SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303304560
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 5303207343
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917314
12CTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 215220310
12AWCI 215490711
13AWCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 215352211
15WCI 5303917360
18WCI 215915507
18AWCI 215915505
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
26WCI 215817086
37AWCI 215480204
48WCI 215940009
49215441502 Frigidaire Refrigerator Door Bin
585304455651 Frigidaire Refrigerator Screw
