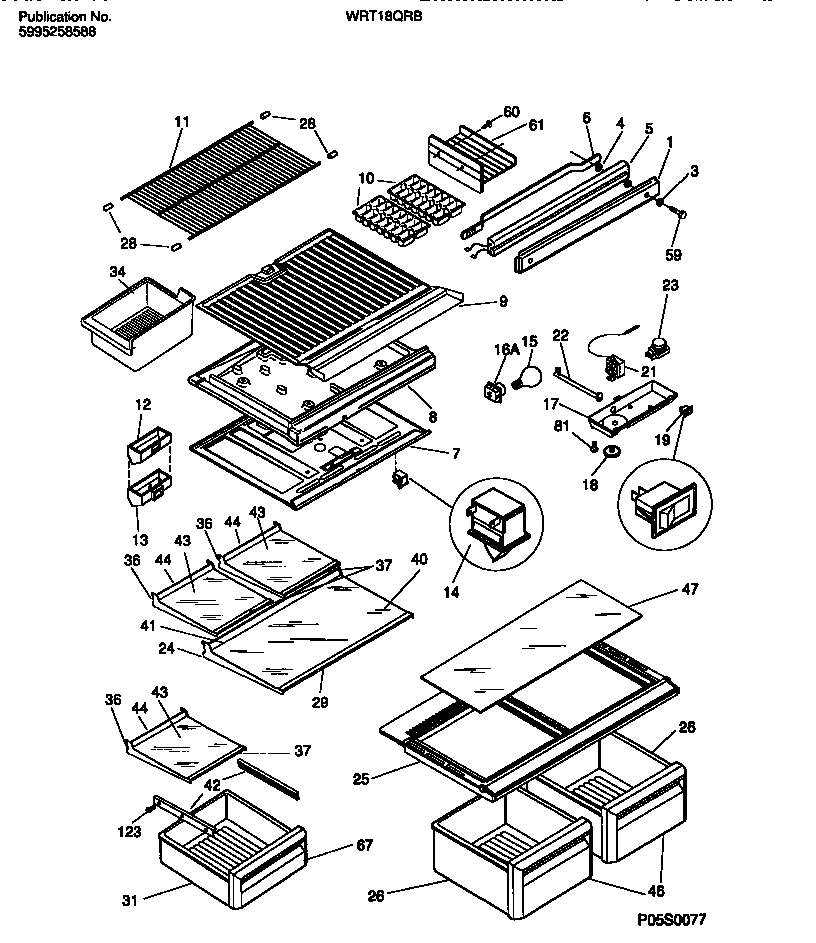

WRT18QRBW1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

WRT18QRBW1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

WRT18QRBW1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
*27163CLIP-CANTILEVER SHLF
1WCI 3206446
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 215882100
5WCI 3206445
6WCI 215170802
7WCI 3206454
7AWCI 5303001380
8WCI 3206456
8BWCI 3018900
8A3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF, FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919161
25B5303307715 Frigidaire Refrigerator Humidity Control
25AWCI 5303299930
25WCI 215681400
263206438 Frigidaire Refrigerator Crisper Pan
28END CAP-SHELF,PROTECTOR
29WCI 215919703
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
36WCI 215919160
37WCI 215919709
40WCI 215723566
41WCI 215919803
42218971202 Frigidaire Refrigerator Hanger-Pan/Tray
42A218971302 Frigidaire Refrigerator Rh Rail
43WCI 215723565
44TRIM-GLASS SHELF, 12.13“, REAR
46WCI 5303304769
47INSERT-PAN COVER, GLASS
59WCI 5308012258
605304455852 Frigidaire Refrigerator Screw
61WCI 215781501
67WCI 5303304686
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
