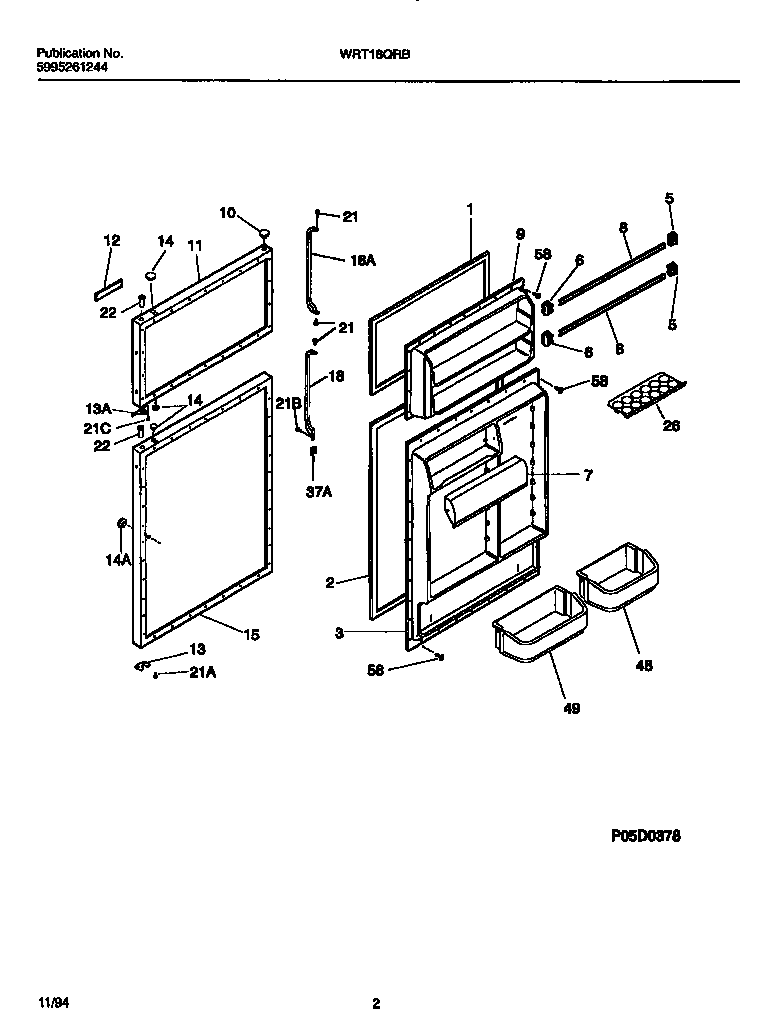

WRT18QRBW2 02 – DOOR SECTION

WRT18QRBW2 02 – DOOR SECTION

Written by

in

WRT18QRBW2 02 – DOOR SECTION

Products

PositionProduct
*77040INSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 215484101
5SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303304560
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 5303207343
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917309
12WCI 215490701
12ALABEL-NAMEPLATE, GREY/WHITE ITRS (NON-ILLUSTRATED)
12CTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5308000255
13AWCI 218249001
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917359
18AWCI 215915537
18WCI 215915539
21WCI 218252001
21C218252201 Frigidaire Refrigerator Screw
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480205
48WCI 215441809
49215441502 Frigidaire Refrigerator Door Bin
585304455651 Frigidaire Refrigerator Screw
