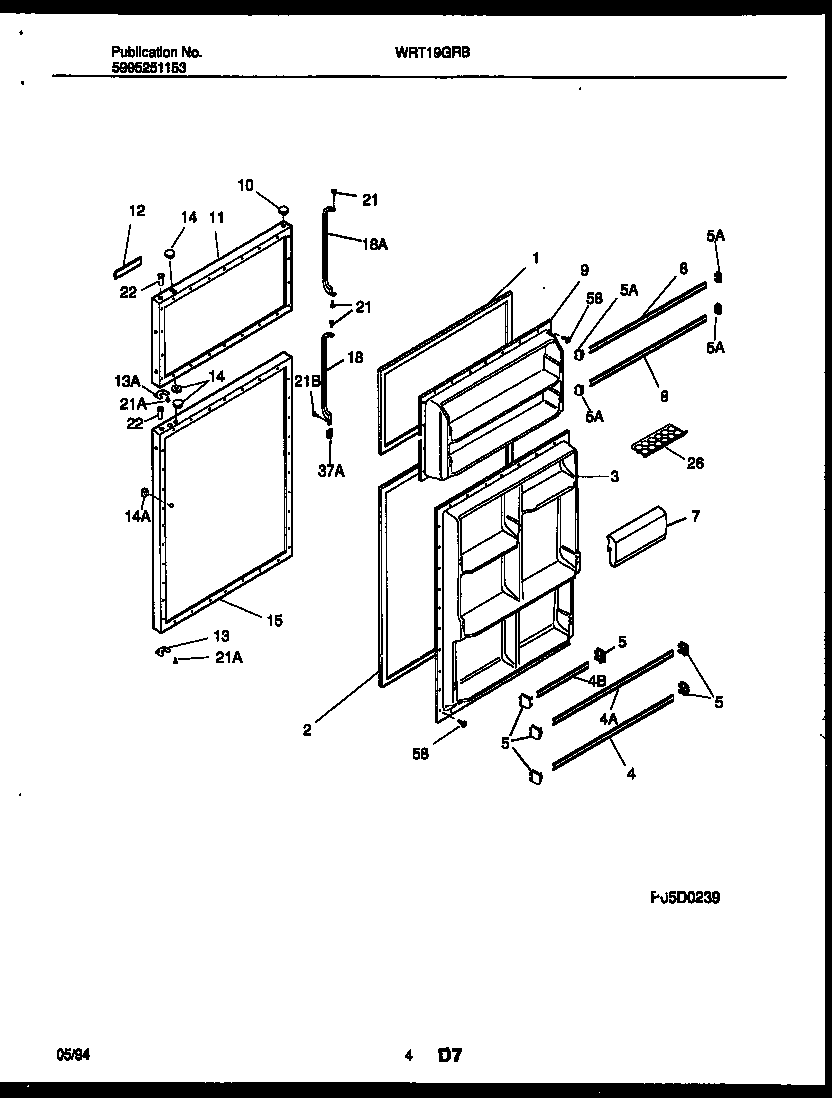

WRT19GRBD0 03 – DOOR PARTS

WRT19GRBD0 03 – DOOR PARTS

Written by

in

WRT19GRBD0 03 – DOOR PARTS

Products

PositionProduct
1WCI 5303276826
2WCI 5303275772
3WCI 215393201
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 215058105
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 215466501
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917351
12WCI 215366311
12CTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12AWCI 215220310
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 215352211
15AWCI 215894100
15PANEL-REFR DOOR, WHITE, W/INSUL & BRACE
18AWCI 215915505
18WCI 215915507
21AWCI 5308011745
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480204
585304455651 Frigidaire Refrigerator Screw
