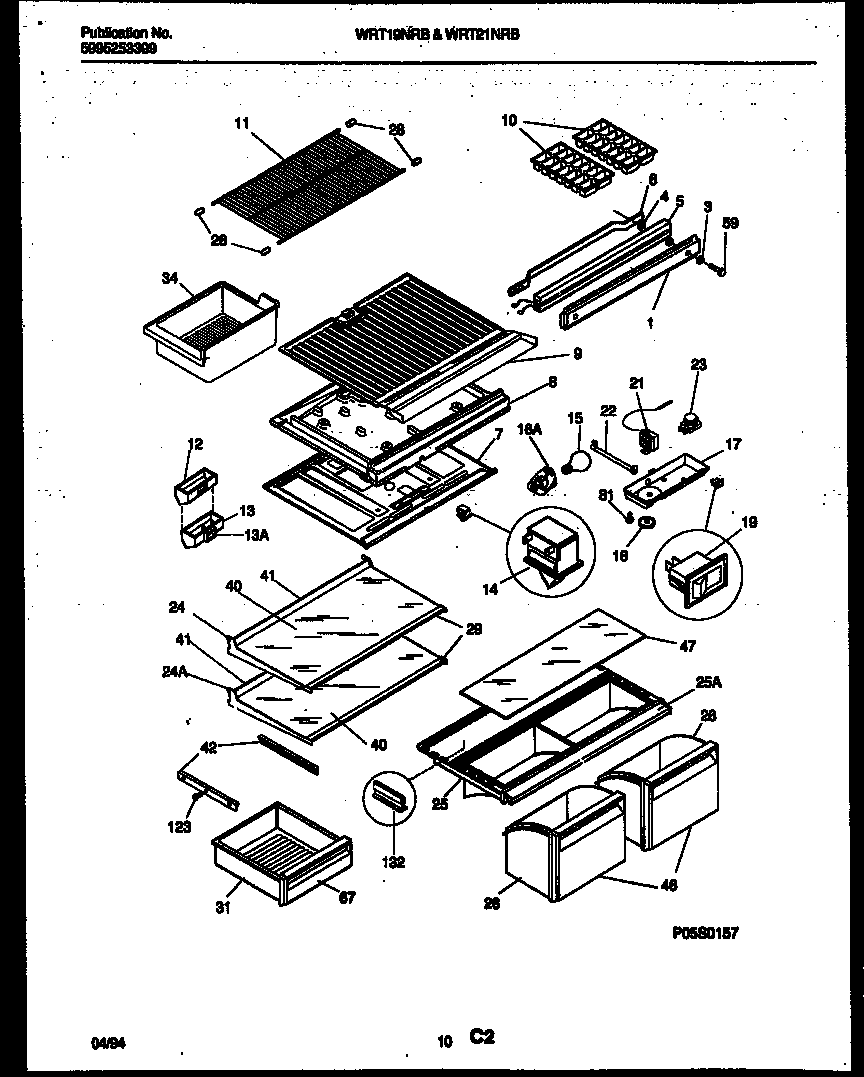

WRT19NRBD0 06 – SHELVES AND SUPPORTS

WRT19NRBD0 06 – SHELVES AND SUPPORTS

Written by

in

WRT19NRBD0 06 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 218188100
5WCI 5303210351
6WCI 5308010008
7AWCI 5303001380
7TOP – REFRIGERATOR
8A3205266 Frigidaire Refrigerator Edge Protector
8DIVIDER-FOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283031
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919111
24AFRAME-MEAT KPR SHLF, CANTILEVER, W/ HANGER TABS
25WCI 215363202
25ATRIM – CRISPER COVER
26WCI 215363301
28END CAP-SHELF,PROTECTOR
29TRIM-SHELF,26.12“,FRONT
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
