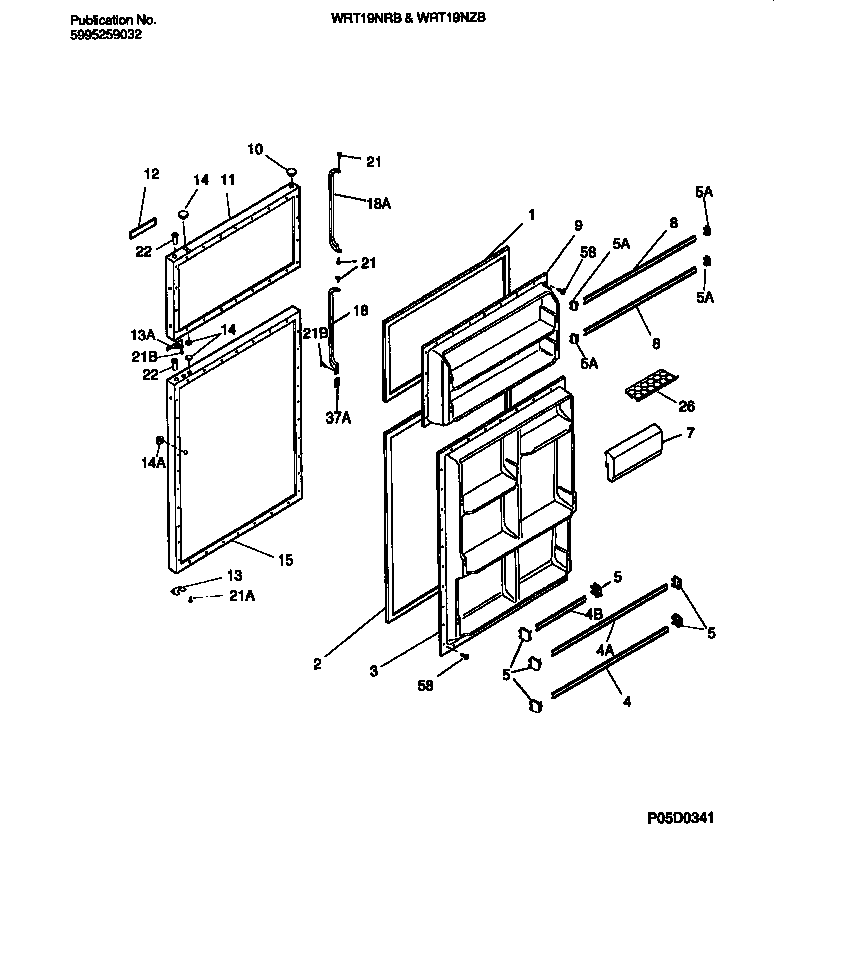

WRT19NRBW2 02 – DOOR SECTION

Products

Position	Product
*10400	INSULATION
1	WCI 215608912
2	WCI 215732413
3	WCI 215393201
5A	215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5	215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7	WCI 215058105
8	215366002 Frigidaire Refrigerator Door Wide Rack
9	WCI 215466501
10	PLUG-BUTTON, WHITE, HINGE BRG HOLE
11	WCI 5303917350
12A	LABEL-NAMEPLATE, GREY/WHITE ITRS (NON-ILLUSTRATED)
12	FRAME – NAMEPLATE,WHITE
12B	TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13	DOOR STOP, REFR SECTION
13A	WCI 218249001
14A	240494001 Frigidaire Refrigerator Plug Button
15	WCI 215894100
15	WCI 5303917388
18A	WCI 215915501
18	WCI 215915503
21	SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21B	154518001 Frigidaire Refrigerator Screw
21A	WCI 5308011745
22	BEARING-HINGE
26	215817806 Frigidaire Refrigerator Egg Tray
37A	WCI 215480205
