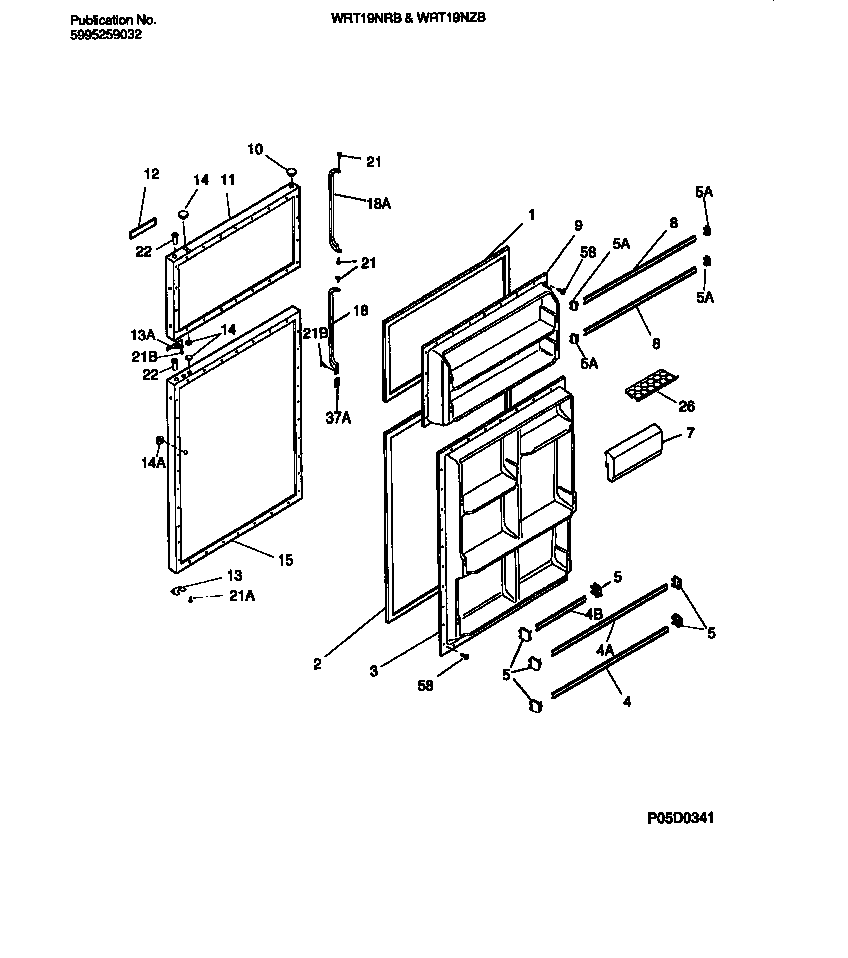

WRT19NZBW2 02 – DOOR SECTION

WRT19NZBW2 02 – DOOR SECTION

Written by

in

WRT19NZBW2 02 – DOOR SECTION

Products

PositionProduct
*10400INSULATION
1WCI 215608912
2WCI 215732413
3WCI 215393201
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 215058105
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 215466501
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917350
12ALABEL-NAMEPLATE, GREY/WHITE ITRS (NON-ILLUSTRATED)
12FRAME – NAMEPLATE,WHITE
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13DOOR STOP, REFR SECTION
13AWCI 218249001
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 215894100
15WCI 5303917388
18AWCI 215915545
18WCI 215915547
21AWCI 5308011745
21SCREW-HANDLE MTG, OVAL HD, 10-24(D) X 5/8, BLACK
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480203
585304455651 Frigidaire Refrigerator Screw
