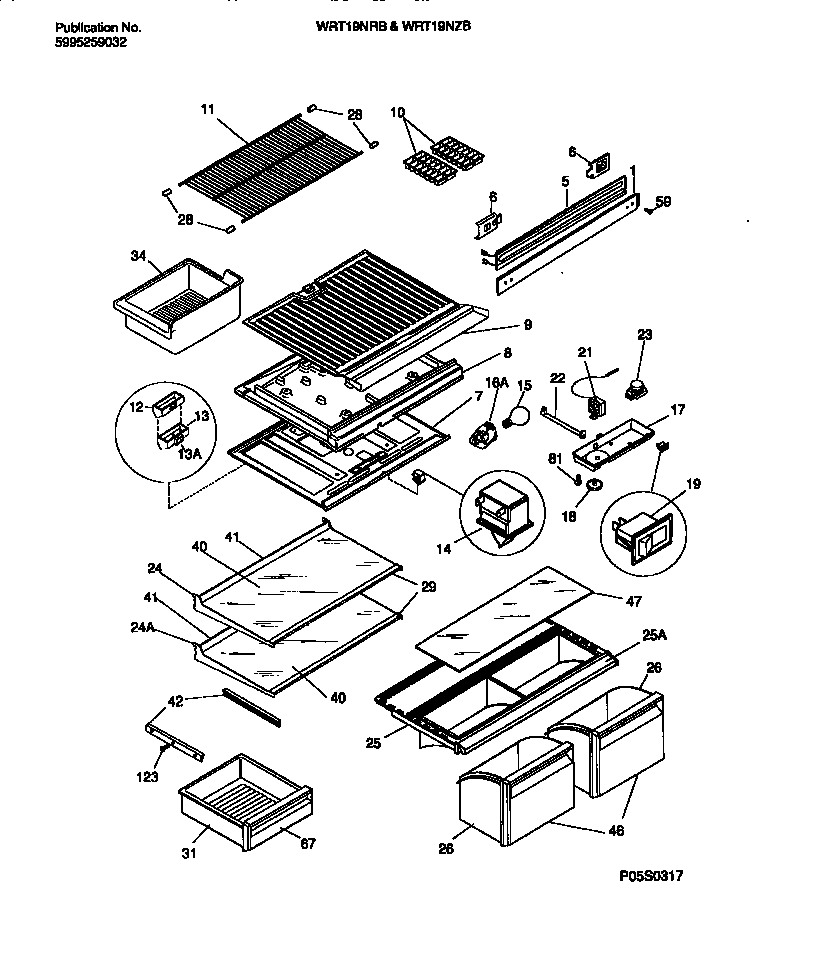

WRT19NZBW2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

WRT19NZBW2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

WRT19NZBW2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218252503
5WCI 218271402
6WCI 218279800
7AWCI 5303001380
7TOP – REFRIGERATOR
8A3205266 Frigidaire Refrigerator Edge Protector
8DIVIDER-FOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283031
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 215919111
24AFRAME-MEAT KPR SHLF, CANTILEVER, W/ HANGER TABS
25ATRIM – CRISPER COVER
25WCI 215363202
26WCI 215363301
28END CAP-SHELF,PROTECTOR
29TRIM-SHELF,26.12“,FRONT
31MEAT PAN
405303212918 Frigidaire Refrigerator Cont
41WCI 215919804
42218971202 Frigidaire Refrigerator Hanger-Pan/Tray
42A218971302 Frigidaire Refrigerator Rh Rail
46WCI 215363404
47WCI 5303303763
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
67WCI 5303304686
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
