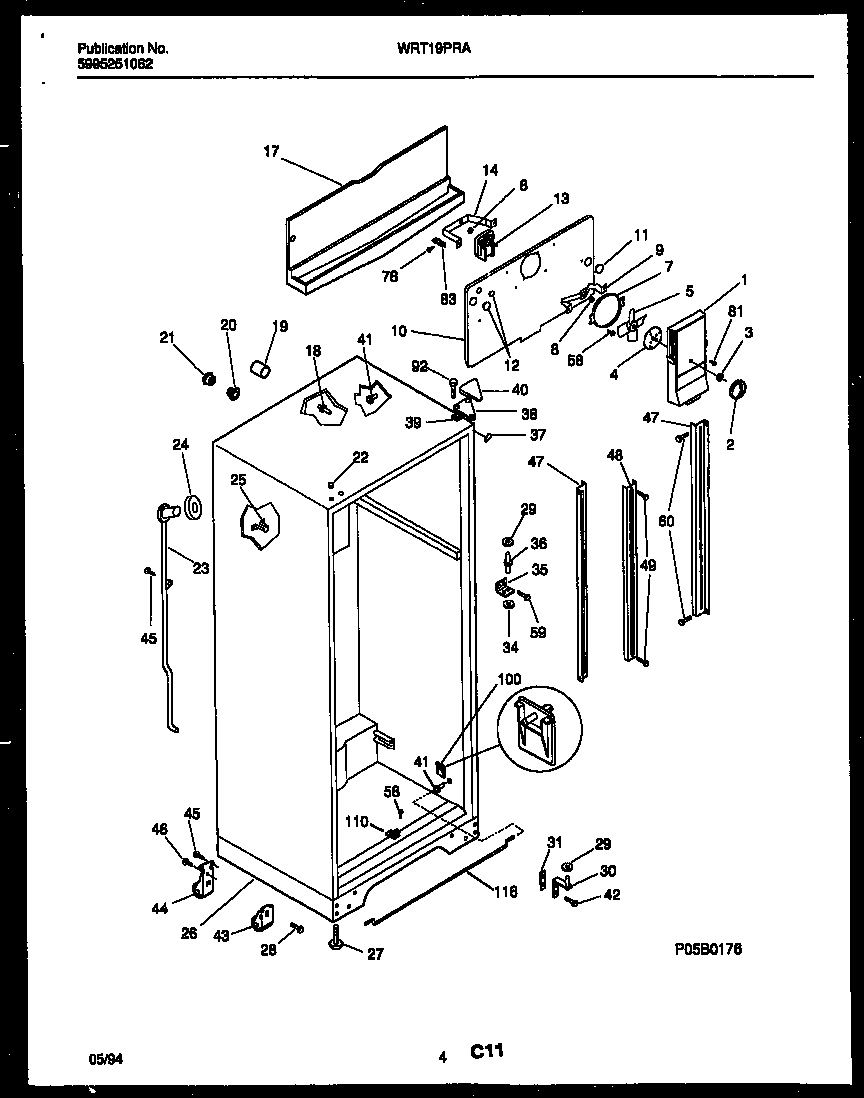

WRT19PRAD0 03 – CABINET PARTS

Products

PositionProduct
1WCI 5303299977
2WCI 5303299978
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10AWCI 5303209636
10WCI 5308009771
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079000
12WCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 5303212487
27Screw-leveling,(2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WASHER, .34 X .62 X .05, NYLON
30BRACKET-LOWER HINGE, W/ HINGE PIN
30ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
31WCI 5303212488
34WCI 5308000186
35WCI 218085400
36WCI 5308000184
37TRIM-CABINET CORNER, ALMOND
38ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38BRACKET-UPPER HINGE
39SHIM – UPPER HINGE
40COVER-UPPER HINGE, ALMOND
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 5303212490
44WCI 5308009773
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 215789000
48WCI 5303292395
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
59WCI 5308012258
605304455852 Frigidaire Refrigerator Screw
