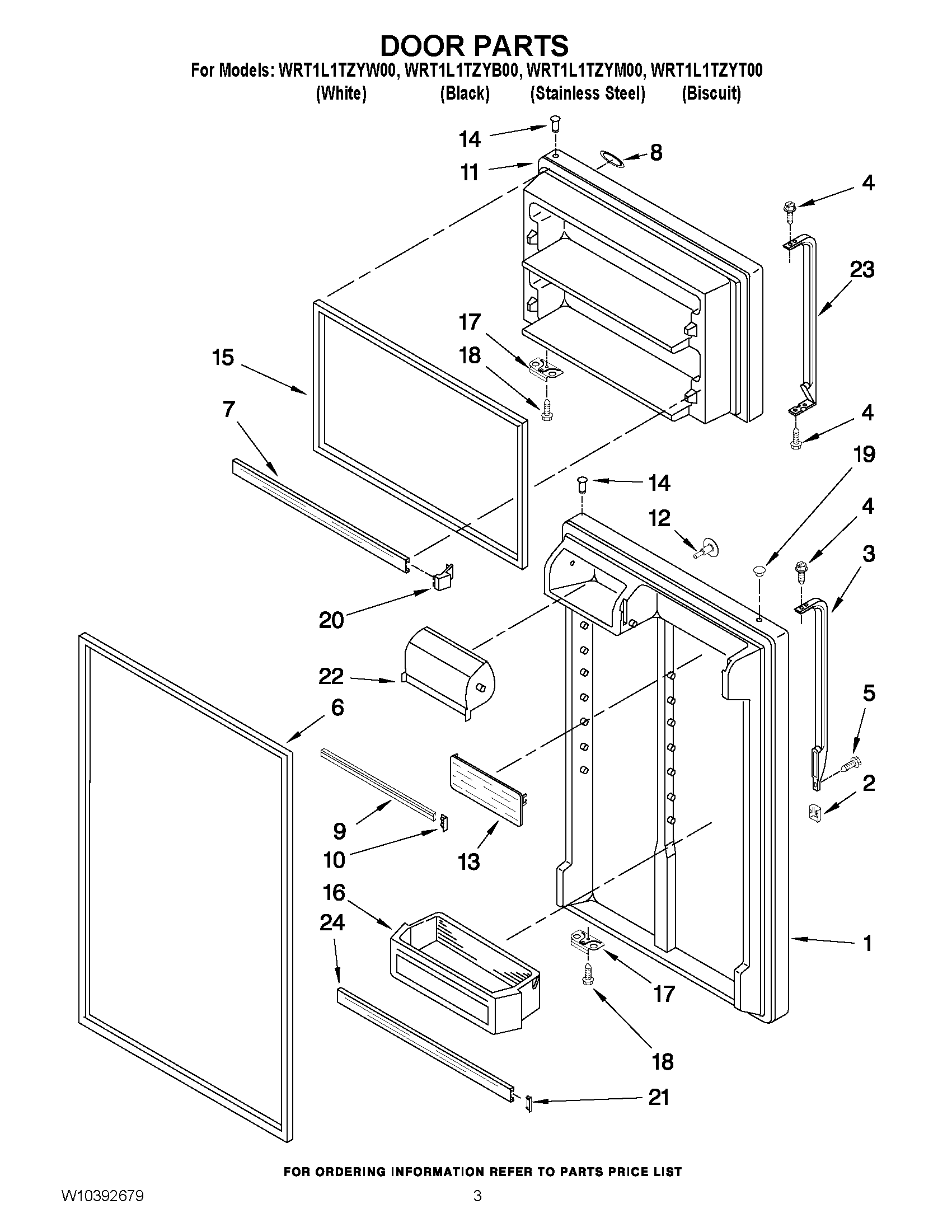

WRT1L1TZYB00 02 – DOOR PARTS

Products

Position	Product
2	WP2193353W Whirlpool Refrigerator Trim Handle
2	Cover, Trim (Black)
2	Cover, Trim (Biscuit)
4	WP489357 Whirlpool Recessed Screw
5	WP8281146 Whirlpool Screw
6	2177311 Whirlpool Refrigerator Magnetic Door Gasket
6	2159061 Whirlpool Refrigerator Door Gasket
7	Trim, Door Shelf (2)
8	W11178521 Whirlpool Dishwasher Nameplate
8	WPW10393264 Whirlpool Refrigerator Nameplate
9	TRIM-DOOR
10	ENDCAP-TRM
11	W11023679 Whirlpool Refrigerator Door Assembly
11	W11023688 Whirlpool Refrigerator Door Assembly
11	W11023687 Whirlpool Refrigerator Door Assembly
11	W10853404 Whirlpool Refrigerator Door Assembly
12	WP2200936 Whirlpool Refrigerator Handle Plug
12	WP2189009 Whirlpool Refrigerator Handle Plug
12	WP2189000 Whirlpool Refrigerator Handle Plug
13	WP2188236 Whirlpool Refrigerator Shelf Door
14	WP2314293 Whirlpool Refrigerator Thimble
15	2177310 Whirlpool Refrigerator Door Gasket
15	WHITE DOOR GASKET-FIP
16	WP2204812 Whirlpool Refrigerator Door Bin
17	W11745278 Whirlpool Bracket
18	WP488921 Whirlpool Refrigerator Screw
19	WP2212651 Whirlpool Refrigerator Button Plug
19	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
19	WP2212649 Whirlpool Refrigerator Button Plug
20	ENDCAP
21	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
22	W11617783 Whirlpool Refrigerator Door Compartment
23	4388950 Whirlpool Refrigerator Handle
23	4388949 Whirlpool Refrigerator Handle
23	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
24	WPW10421486 Whirlpool Refrigerator Door Trim
