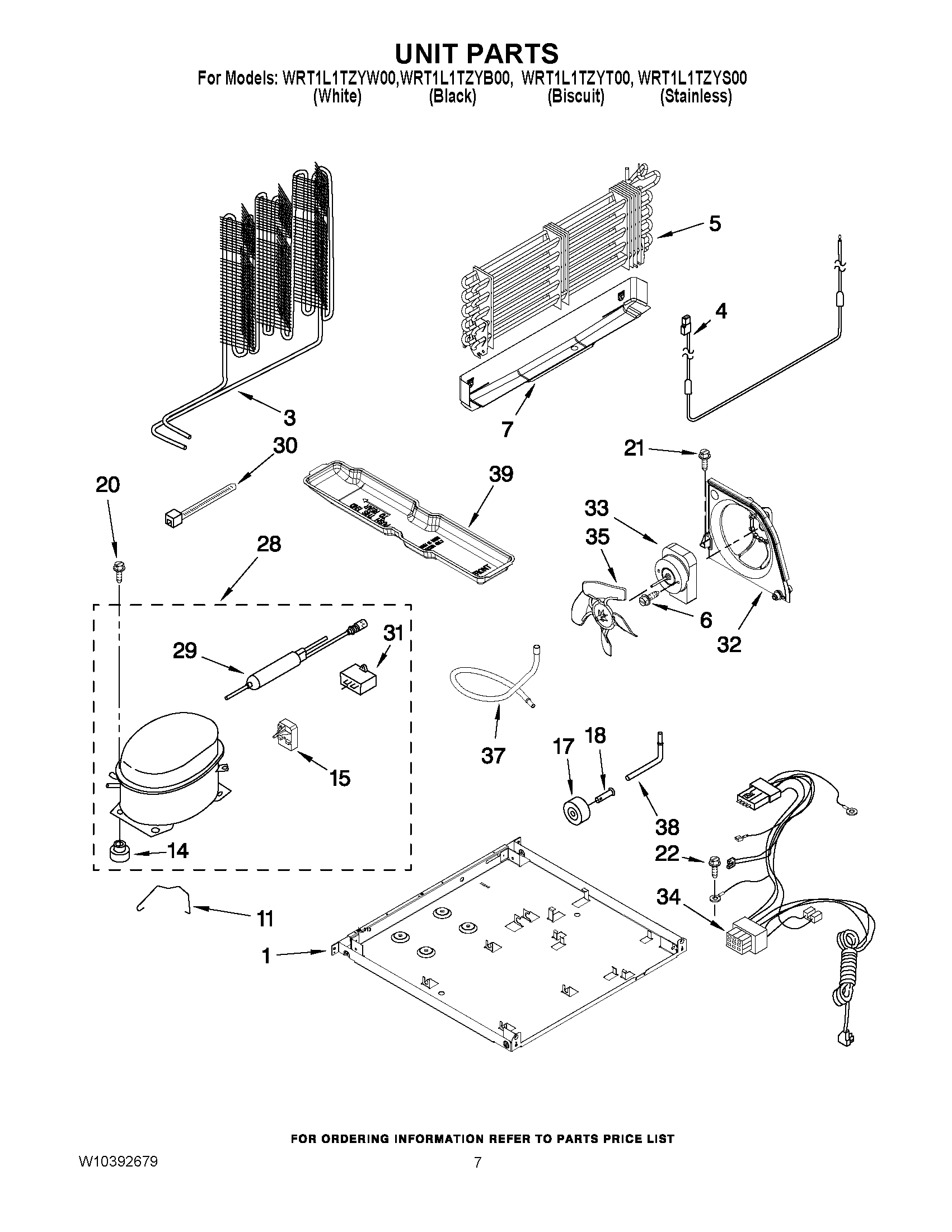

WRT1L1TZYS00 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W11396825 Whirlpool Plate
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
11	W10249638 Whirlpool Retainer Clip
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	W10892065 Whirlpool Refrigerator Compressor Start Relay Device
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
21	3400518 Whirlpool Oven Foot Mount Screw
22	WP489128 Whirlpool Refrigerator Screw
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	WPW10662129 Whirlpool Refrigerator Run Capacitor
32	WP2315541 Whirlpool Refrigerator Air Baffle
33	WP2188874 Whirlpool Refrigerator Condenser Motor
34	W10315318 Whirlpool Refrigerator Wire Harness
35	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
37	TUBE, SUCTION
38	W11676464 Whirlpool Tube
39	W10890667 Whirlpool Refrigerator Drip Pan
