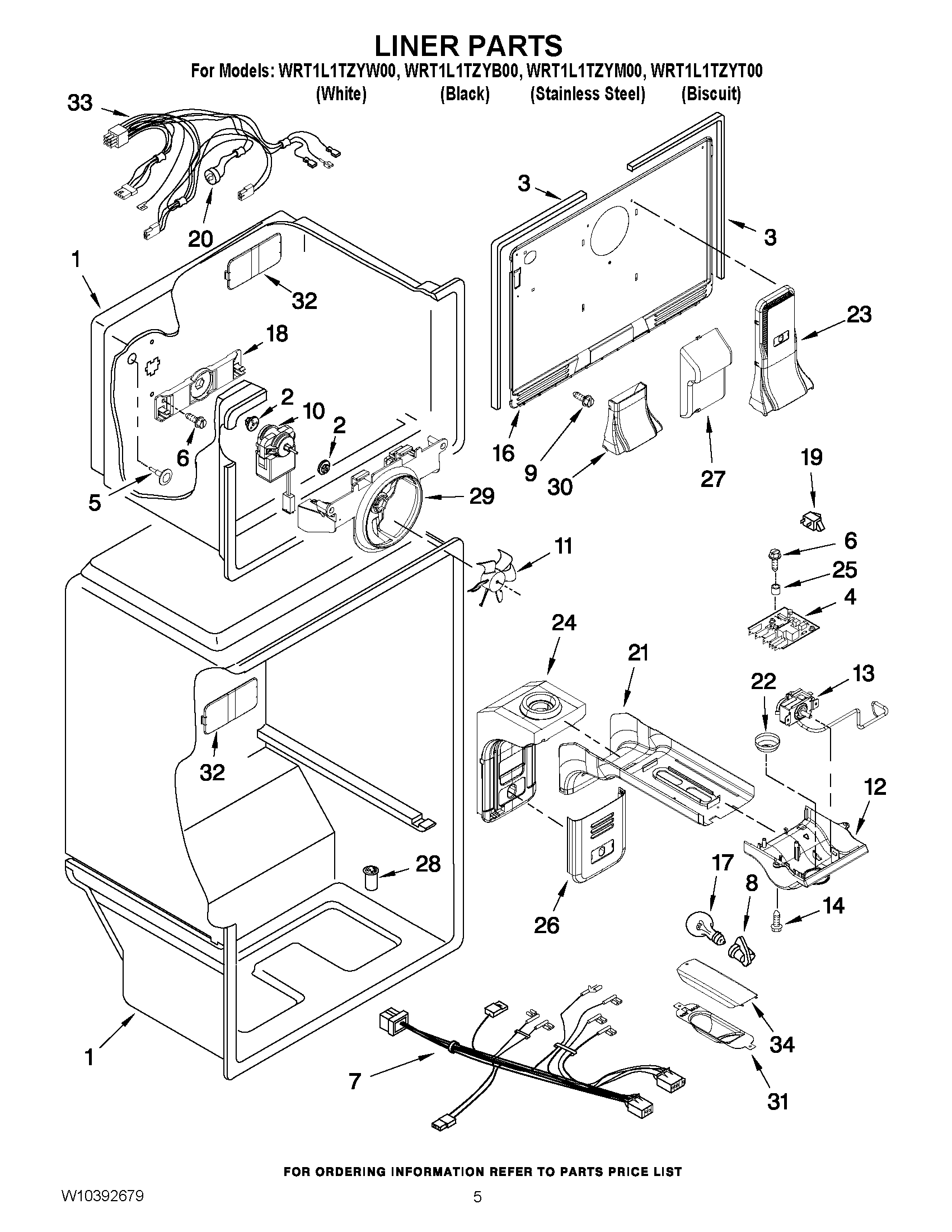

WRT1L1TZYT00 03 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WPW10352689-includeCORE Whirlpool WPW10352689 Refrigerator Electronic Control Board + Core
5	WP941839 Whirlpool Refrigerator Button Plug
6	WP488163 Whirlpool Refrigerator Screw
7	W10318068 Whirlpool Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10142283 Whirlpool Refrigerator Screw
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10316941 Whirlpool Refrigerator Control Box
13	WPW10584888 Whirlpool Refrigerator Thermostat
14	WP489174 Whirlpool Refrigerator Screw
16	W10385132 Whirlpool Refrigerator Evaporator Cover
17	W10887190 Whirlpool Refrigerator Light Bulb
18	2254454 Whirlpool Refrigerator Bracket
19	W11384469 Whirlpool Door Switch
20	WPW10392132 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
21	WPW10305175 Whirlpool Refrigerator Cover
22	KNOB
23	TOWER, AIR
24	ASSEMBLY, AIR DIFFUSER
25	W10418502 Whirlpool Refrigerator Spacer
26	CUP, AIR DIFFUSER
27	WPW10339203 Whirlpool Refrigerator Tube Cover
28	WP2210509 Whirlpool Refrigerator Tub Valve
29	W10850162 Whirlpool Refrigerator Orifice
30	ASSEMBLY, TOWER CONNECTION
31	W10300161 Whirlpool Refrigerator Shield
32	W10336009 Whirlpool Refrigerator Cover
33	W11161901 Whirlpool Refrigerator Wire Harness
34	WPW10348614 Whirlpool Refrigerator Cover
