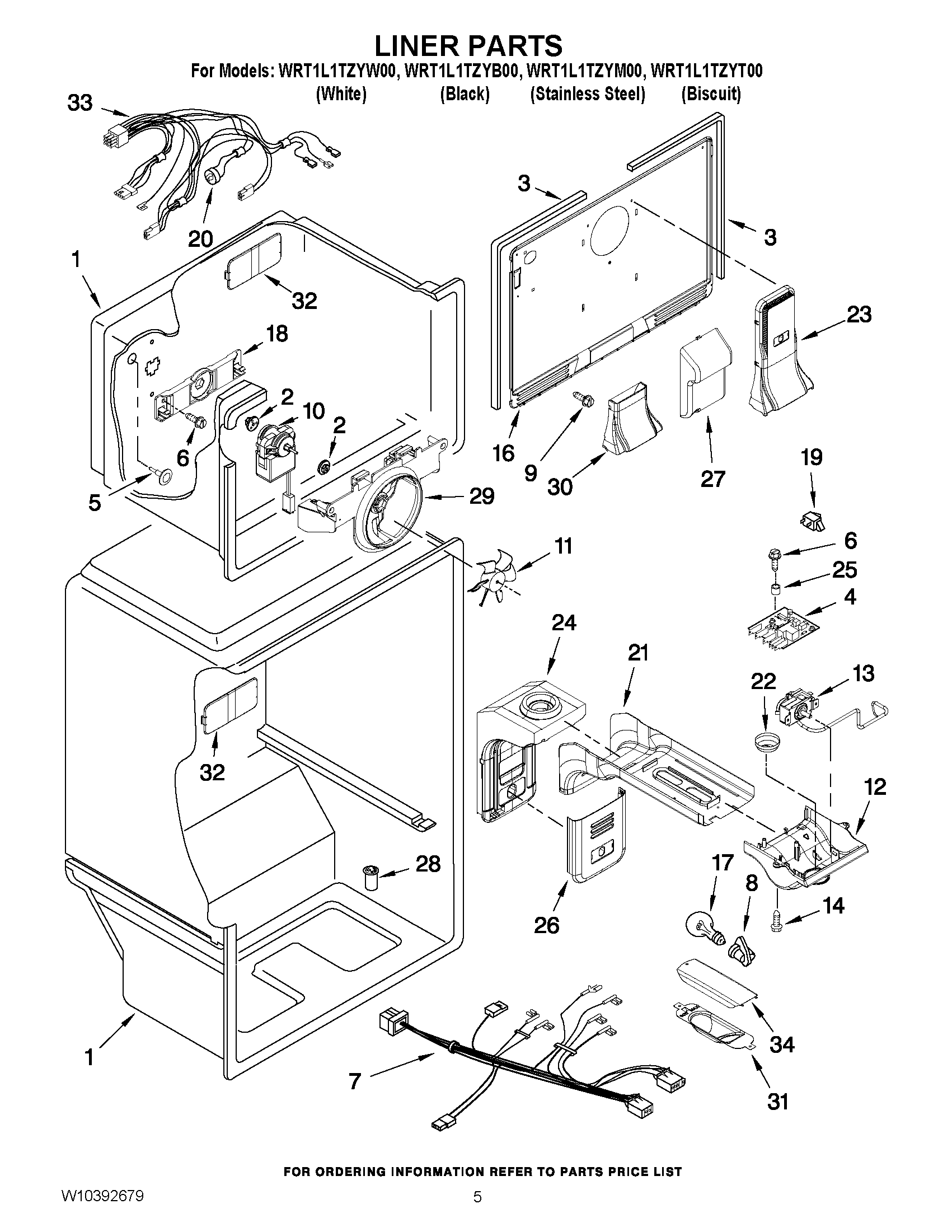

WRT1L1TZYW00 03 – LINER PARTSadmin2025-04-26T11:12:03+00:00WRT1L1TZYW00 03 – LINER PARTS ProductsPositionProduct1CABINET (NOT A SERVICEABLE PART)2WP2264462 Whirlpool Refrigerator Grommet3WP2254360 Whirlpool Refrigerator Gasket4WPW10352689-includeCORE Whirlpool WPW10352689 Refrigerator Electronic Control Board + Core5WP941839 Whirlpool Refrigerator Button Plug6WP488163 Whirlpool Refrigerator Screw7W10318068 Whirlpool Wire Harness84387478 Whirlpool Refrigerator Light Socket9WPW10142283 Whirlpool Refrigerator Screw10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor11WP2163777 Whirlpool Refrigerator Fan Blade12W10316941 Whirlpool Refrigerator Control Box13WPW10584888 Whirlpool Refrigerator Thermostat14WP489174 Whirlpool Refrigerator Screw16W10385132 Whirlpool Refrigerator Evaporator Cover17W10887190 Whirlpool Refrigerator Light Bulb182254454 Whirlpool Refrigerator Bracket19W11384469 Whirlpool Door Switch20WPW10392132 Whirlpool Refrigerator Bi-Metal Defrost Thermostat21WPW10305175 Whirlpool Refrigerator Cover22KNOB23TOWER, AIR24ASSEMBLY, AIR DIFFUSER25W10418502 Whirlpool Refrigerator Spacer26CUP, AIR DIFFUSER27WPW10339203 Whirlpool Refrigerator Tube Cover28WP2210509 Whirlpool Refrigerator Tub Valve29W10850162 Whirlpool Refrigerator Orifice30ASSEMBLY, TOWER CONNECTION31W10300161 Whirlpool Refrigerator Shield32W10336009 Whirlpool Refrigerator Cover33W11161901 Whirlpool Refrigerator Wire Harness34WPW10348614 Whirlpool Refrigerator Cover
