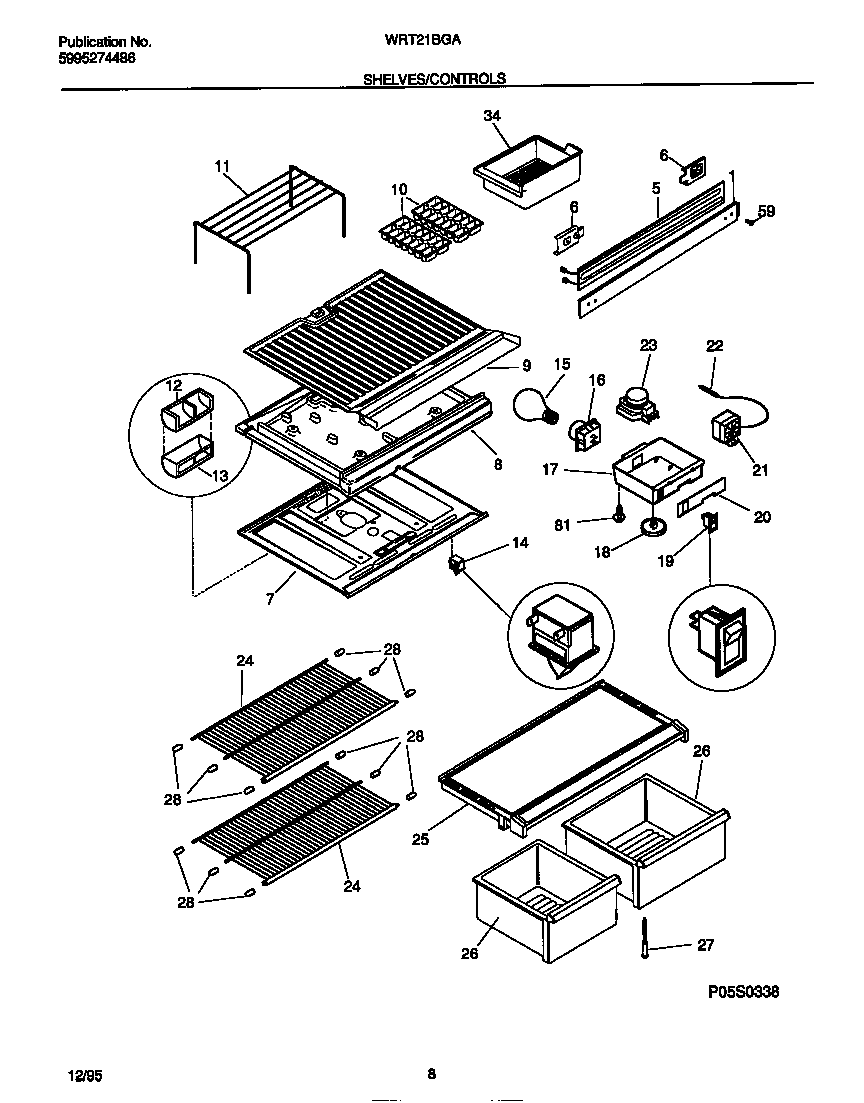

WRT21BGAW3 04 – SHELVES/CONTROLS

WRT21BGAW3 04 – SHELVES/CONTROLS

Written by

in

WRT21BGAW3 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218252503
5WCI 218271402
6WCI 218279800
7ATOP-REFRIGERATOR
7CBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7BWCI 5303001380
8BHARNESS-DIVIDER (NON-ILLUSTRATED)
8AWCI 5308013674
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SPACER, FRZR SHELF (NOT ILLUSTRATED)
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17AWCI 5303015152
17BNUT, ANCHOR (NI)
18WCI 5303313909
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 218459901
21AWCI 5303200810
21BWCI 5303001260
22TUBE
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, FIXED, FULL WIDTH, WIRE, REFR SECTION
25COVER-CRISPER PAN
26APAN-CRISPER, 14.35“ WIDE
26BPAN-CRISPER, 11.35“ WIDE
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
