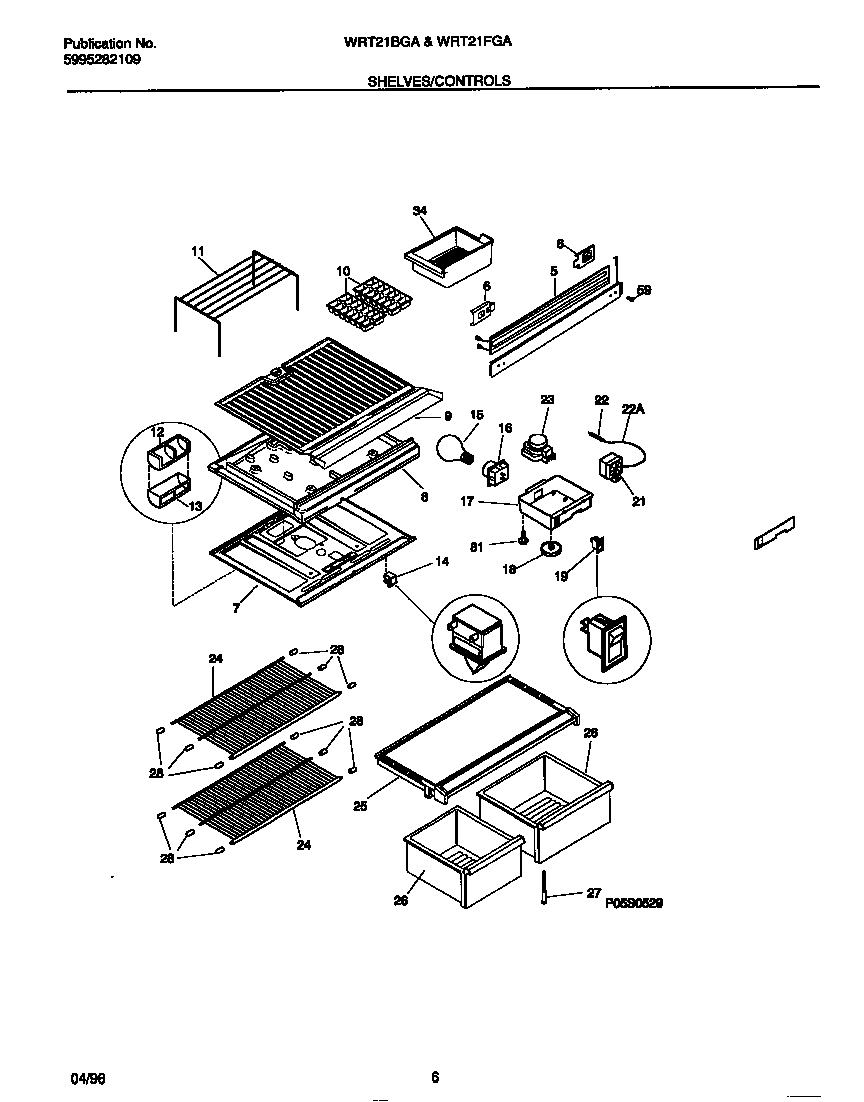

WRT21BGAW4 04 – SHELVES/CONTROLS

WRT21BGAW4 04 – SHELVES/CONTROLS

Written by

in

WRT21BGAW4 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218651900
5WCI 218271402
6WCI 218279800
7AWCI 3019038
7BWCI 5303001380
8CHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8B3205266 Frigidaire Refrigerator Edge Protector
8AWCI 5303019039
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SPACER, FRZR SHELF (NOT ILLUSTRATED)
12AWCI 218630800
12B5303001449 Frigidaire Refrigerator Seal
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 218631001
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17AWCI 5303307349
17BNUT, ANCHOR (NI)
18WCI 5303313909
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303303674
21BWCI 5303001260
22TUBE
22WCI 3018891
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, FIXED, FULL WIDTH, WIRE, REFR SECTION
25COVER-CRISPER PAN
26BPAN-CRISPER, 11.35“ WIDE
26APAN-CRISPER, 14.35“ WIDE
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
