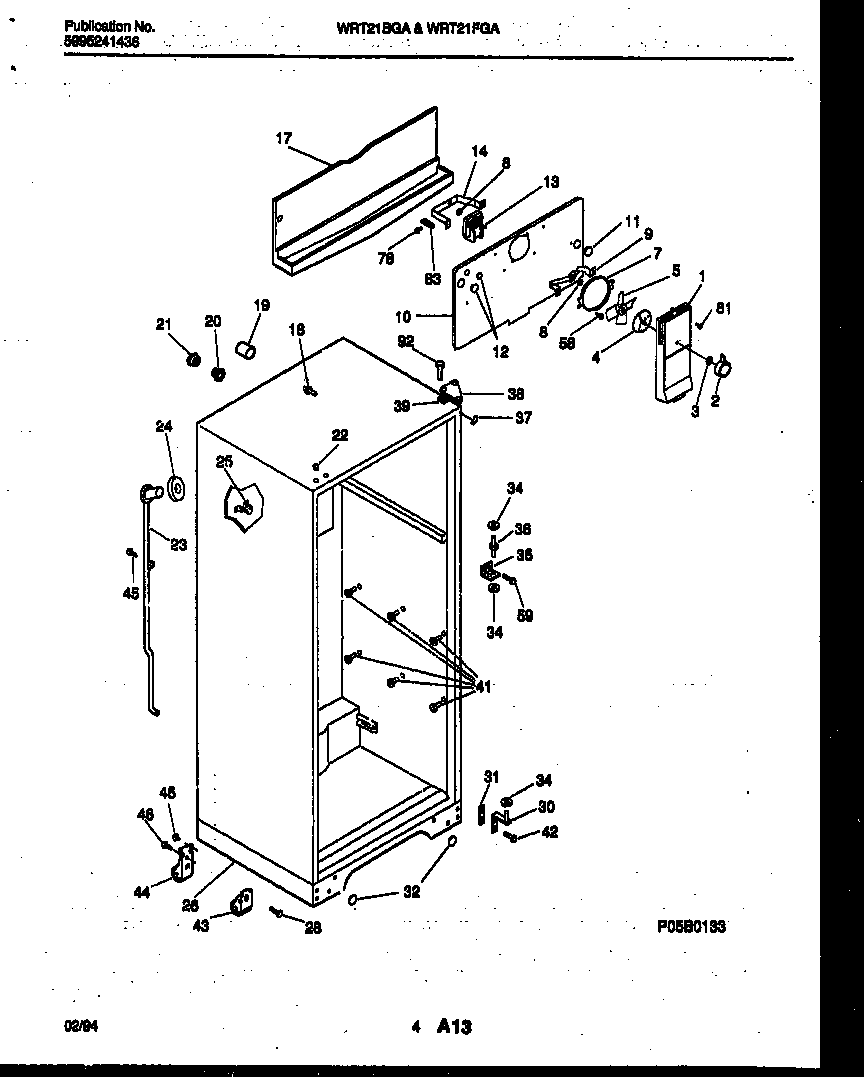

WRT21FGAD0 03 – CABINET PARTS

WRT21FGAD0 03 – CABINET PARTS

Written by

in

WRT21FGAD0 03 – CABINET PARTS

Products

PositionProduct
NIWCI 5303209636
NITAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
NITAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
*86050PLUG, BUTTON, CABINET LINER (NI)
NITAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
NIWCI 5303001361
NI5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1WCI 5303281380
2WCI 5308000081
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
10COVER, COIL
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079100
12WCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23WCI 5303210377
24WCI 5303207353
25WCI 5308000056
26WCI 5303212487
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
30BRACKET-LOWER HINGE, W/ HINGE PIN
31WCI 5303212488
32WCI 5303212923
34WCI 5308000186
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, ALMOND
38BRACKET-UPPER HINGE
39SHIM – UPPER HINGE
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 5303212490
44WCI 5308009773
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
