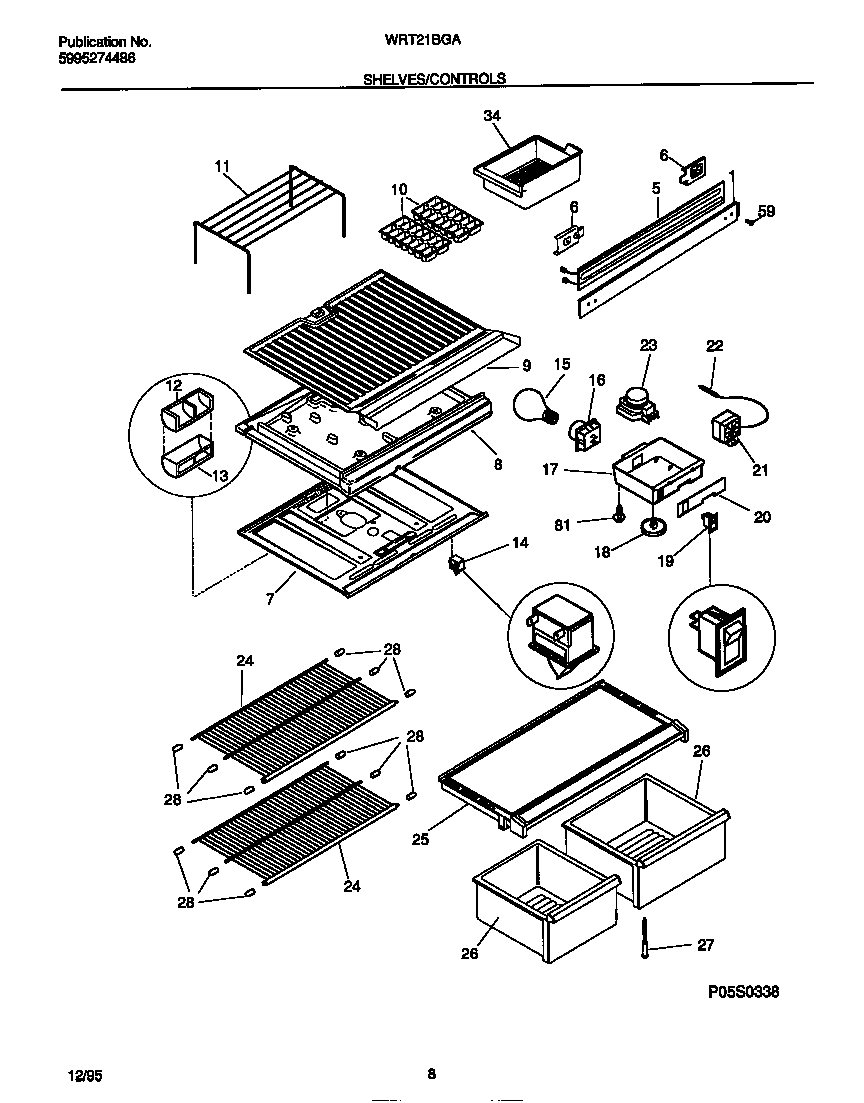

WRT21FGAD3 04 – SHELVES/CONTROLS

Products

PositionProduct
NI5304455649 Frigidaire Refrigerator Screw
NISPACER, FRZR SHELF (NOT ILLUSTRATED)
NIWCI 5303001260
NINUT, ANCHOR (NI)
NIWCI 5303001380
NIPAN-CRISPER, 11.35“ WIDE
NIHARNESS-DIVIDER (NON-ILLUSTRATED)
NIBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
1WCI 218252504
5WCI 218271402
6WCI 218279800
7TOP-REFRIGERATOR
8WCI 5308013674
9BOTTOM, FREEZER
11WCI 5303291413
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
18WCI 5303313909
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 218459901
21WCI 5303200810
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, FIXED, FULL WIDTH, WIRE, REFR SECTION
25COVER-CRISPER PAN
26PAN-CRISPER, 14.35“ WIDE
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
345303212918 Frigidaire Refrigerator Cont
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
