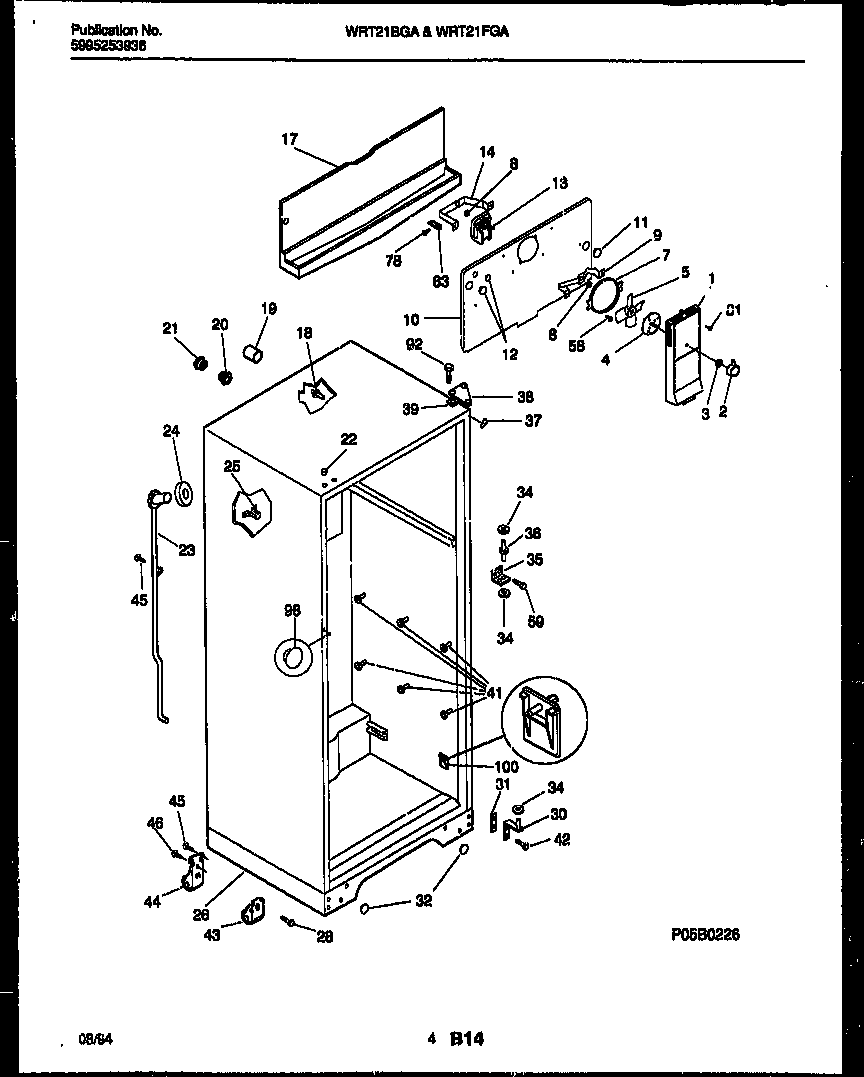

WRT21FGAW1 03 – CABINET PARTS

Products

PositionProduct
NIWCI 5303209636
NITAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
NI5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
NIPLUG, BUTTON, CABINET LINER (NI)
NITAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
NITAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
1WCI 5303300040
2WCI 5308000081
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10COVER, COIL
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079100
12WCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 5303212487
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
30BRACKET-LOWER HINGE, W/ HINGE PIN
31WCI 5303212488
32WCI 5303212923
34WCI 5308000186
35WCI 218085400
36WCI 5308000184
37TRIM-CABINET CORNER, WHITE
38BRACKET-UPPER HINGE
39SHIM – UPPER HINGE
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 5303212490
44WCI 5308009773
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
59WCI 215097000
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98215099701 Frigidaire Refrigerator Button Plug
100SUPPORT-PAN COVER
