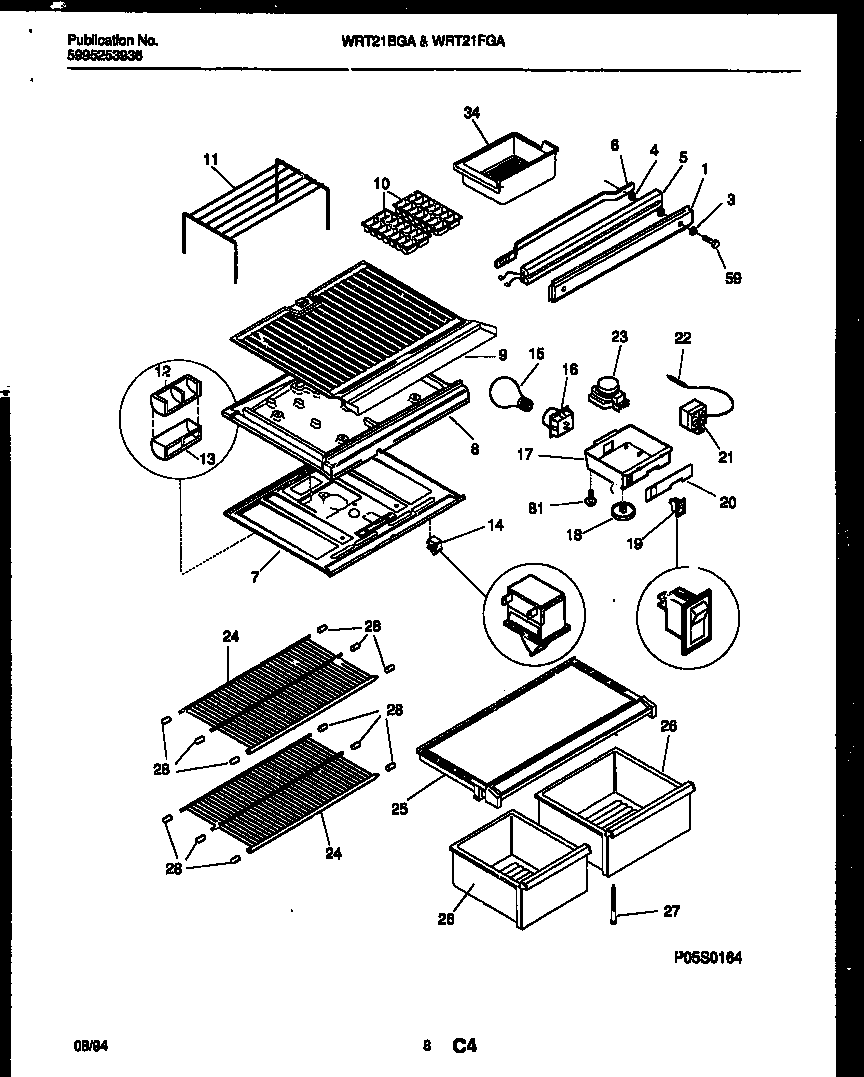

WRT21FGAW1 05 – SHELVES AND SUPPORTS

WRT21FGAW1 05 – SHELVES AND SUPPORTS

Written by

in

WRT21FGAW1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
NIBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
NIPAN-CRISPER, 11.35“ WIDE
NIWCI 5303001260
NINUT, ANCHOR (NI)
NIWCI 5303001380
NI5304455649 Frigidaire Refrigerator Screw
NIHARNESS-DIVIDER (NON-ILLUSTRATED)
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 218188100
5WCI 5303210351
6WCI 5308010008
7TOP-REFRIGERATOR
8WCI 5308013674
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
18WCI 5303300067
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21WCI 5303200810
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, FIXED, FULL WIDTH, WIRE, REFR SECTION
25COVER-CRISPER PAN
26PAN-CRISPER, 14.35“ WIDE
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
59WCI 215097000
815304455650 Frigidaire Refrigerator Screw
