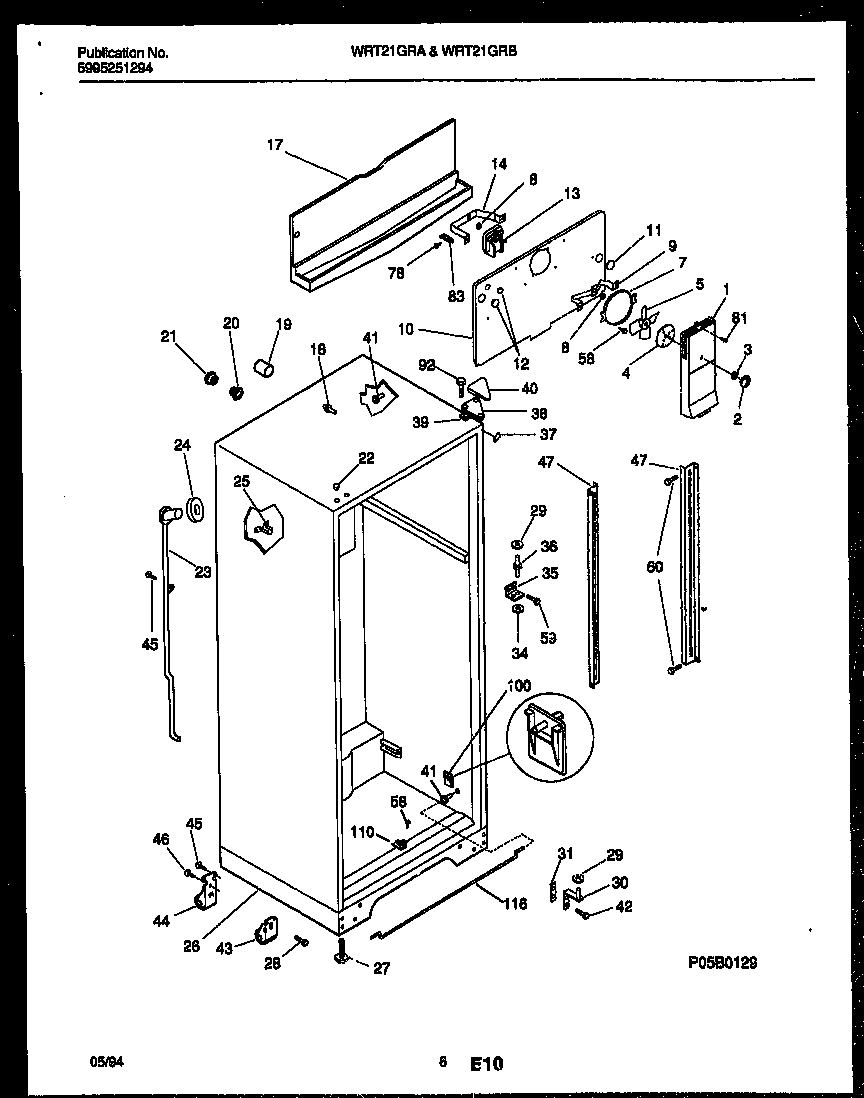

WRT21GRBD0 04 – CABINET

Products

Position	Product
NI	WCI 215079100
NI	PLUG, BUTTON, CABINET LINER (NI)
NI	WCI 5303209636
NI	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
NI	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
NI	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
NI	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1	WCI 5303300040
2	WCI 5303299978
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	COVER, COIL
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079000
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 5303001470
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23	WCI 5303210377
24	WCI 5303207353
25	WCI 215774100
26	WCI 5303212487
27	Screw-leveling,(2)
28	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29	WASHER, .34 X .62 X .05, NYLON
30	BRACKET-LOWER HINGE, W/ HINGE PIN
31	WCI 5303212488
34	WCI 5308000186
35	WCI 218085400
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38	BRACKET-UPPER HINGE
39	SHIM – UPPER HINGE
40	COVER-UPPER HINGE, ALMOND
41	5304509705 Frigidaire Refrigerator Grommet
42	241710601 Frigidaire Refrigerator Screw
43	WCI 5303212490
44	WCI 5308009773
45	5304455651 Frigidaire Refrigerator Screw
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47	WCI 215789000
59	WCI 5308012258
60	5304455852 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
100	SUPPORT-PAN COVER
110	WCI 215363500
116	WCI 215426702
