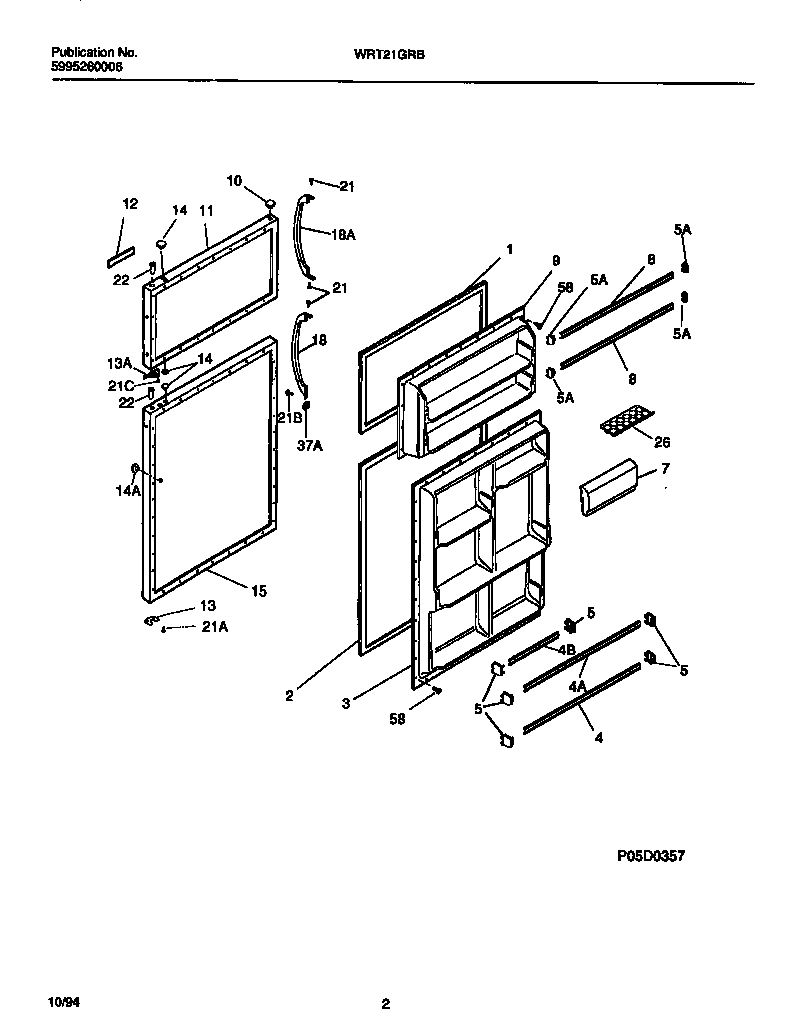

WRT21GRBD1 02 – DOOR SECTION

WRT21GRBD1 02 – DOOR SECTION

Written by

in

WRT21GRBD1 02 – DOOR SECTION

Products

PositionProduct
NITAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*39200INSULATION
NIWCI 215220310
NIWCI 215894100
1WCI 215608903
2WCI 215732403
3WCI 215393201
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 215058105
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 215530301
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917380
12WCI 215366311
13AWCI 218249002
13DOOR STOP, REFR SECTION
14AWCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917403
18WCI 215915544
18AWCI 215915542
21B154518001 Frigidaire Refrigerator Screw
21AWCI 5308011745
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
21C218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480204
585304455651 Frigidaire Refrigerator Screw
