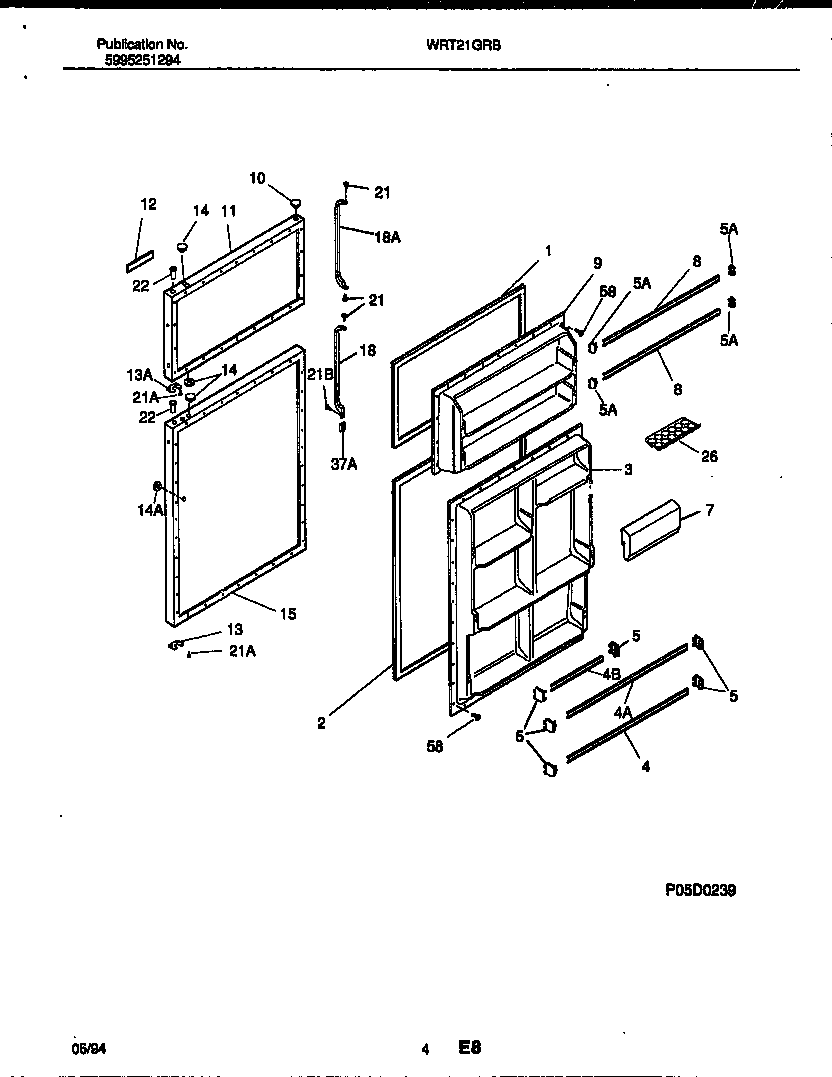

WRT21GRBW0 03 – DOOR

WRT21GRBW0 03 – DOOR

Written by

in

WRT21GRBW0 03 – DOOR

Products

PositionProduct
*95877INSULATION
NILABEL-NAMEPLATE, GREY/WHITE ITRS (NON-ILLUSTRATED)
NIWCI 215894100
NITAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
1WCI 5318680314
2WCI 5303018792
3WCI 215393201
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 215058105
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 215530301
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917379
12FRAME – NAMEPLATE,WHITE
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917402
18WCI 215915504
18AWCI 215915502
21B154518001 Frigidaire Refrigerator Screw
21AWCI 5308011745
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37ATRIM-HANDLE, END CAP, WHITE, REFR DOOR
585304455651 Frigidaire Refrigerator Screw
