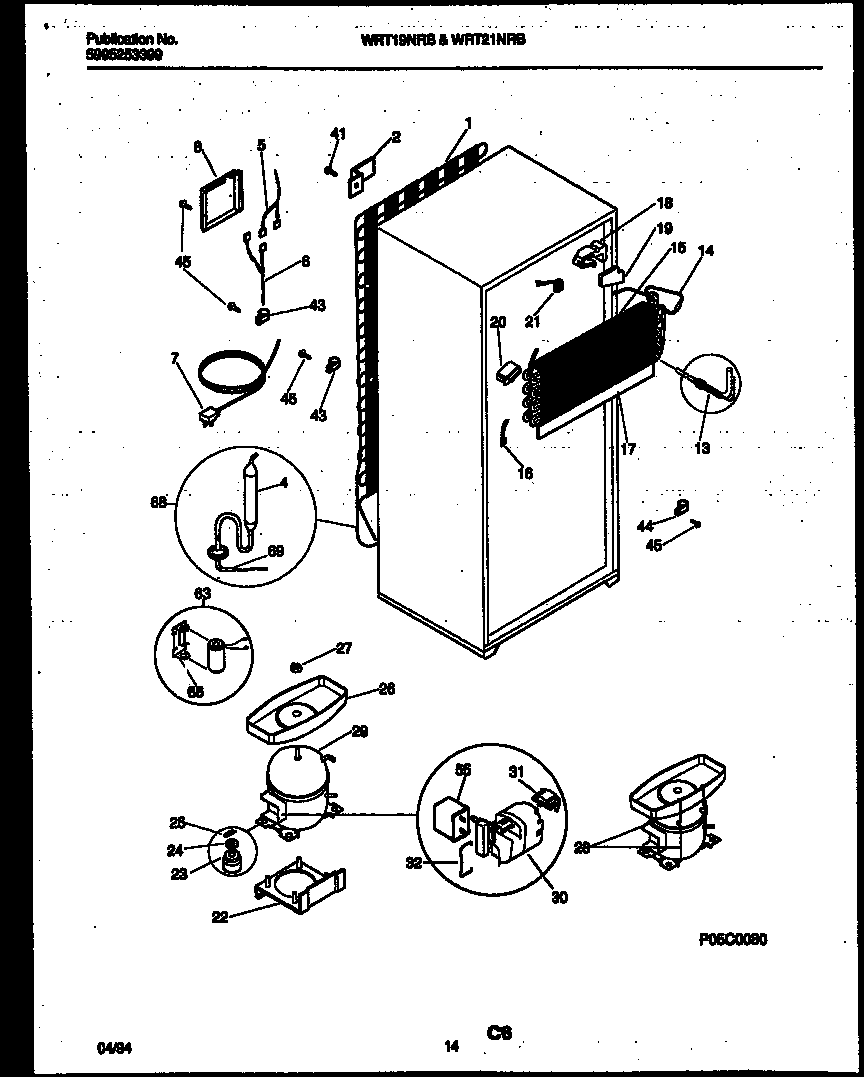

WRT21NRBW0 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

WRT21NRBW0 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

WRT21NRBW0 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
NI5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
NI5303017691 Frigidaire Refrigerator Spacer-Tube
NI5304455852 Frigidaire Refrigerator Screw
NIWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*93962HOT TUBE REPAIR KIT-SERVICE
1WCI 5300163133
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
6WCI 215257001
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 215076400
145317842502 Frigidaire Defrost Heater
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26PAN-DEFROST DRAIN, ORIG/SVCE COMPR
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29WCI 5303917192
30WCI 216008901
31WCI 5303272819
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
63CAPACITOR ASSY, START, W/BRACKET 66
66WCI 215886600
69WCI 215116300
