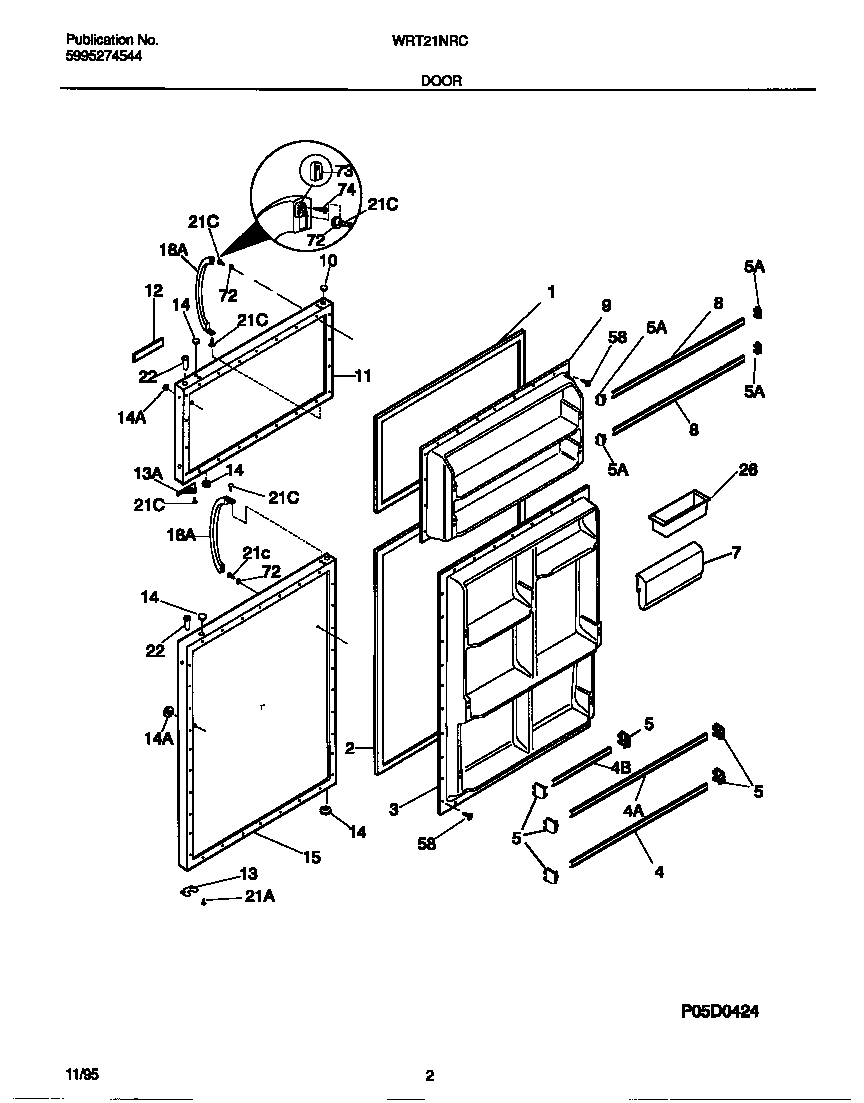

WRT21NRCW1 02 – DOOR

WRT21NRCW1 02 – DOOR

Written by

in

WRT21NRCW1 02 – DOOR

Products

PositionProduct
*01440INSULATION
NIWCI 5303001380
1WCI 215608913
2WCI 215732413
3WCI 215393201
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7AWCI 215058112
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 215530301
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917608
13DOOR STOP, REFR SECTION
13WCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917623
18WHITE DOOR HANDLE
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26WCI 3204522
58216858001 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
