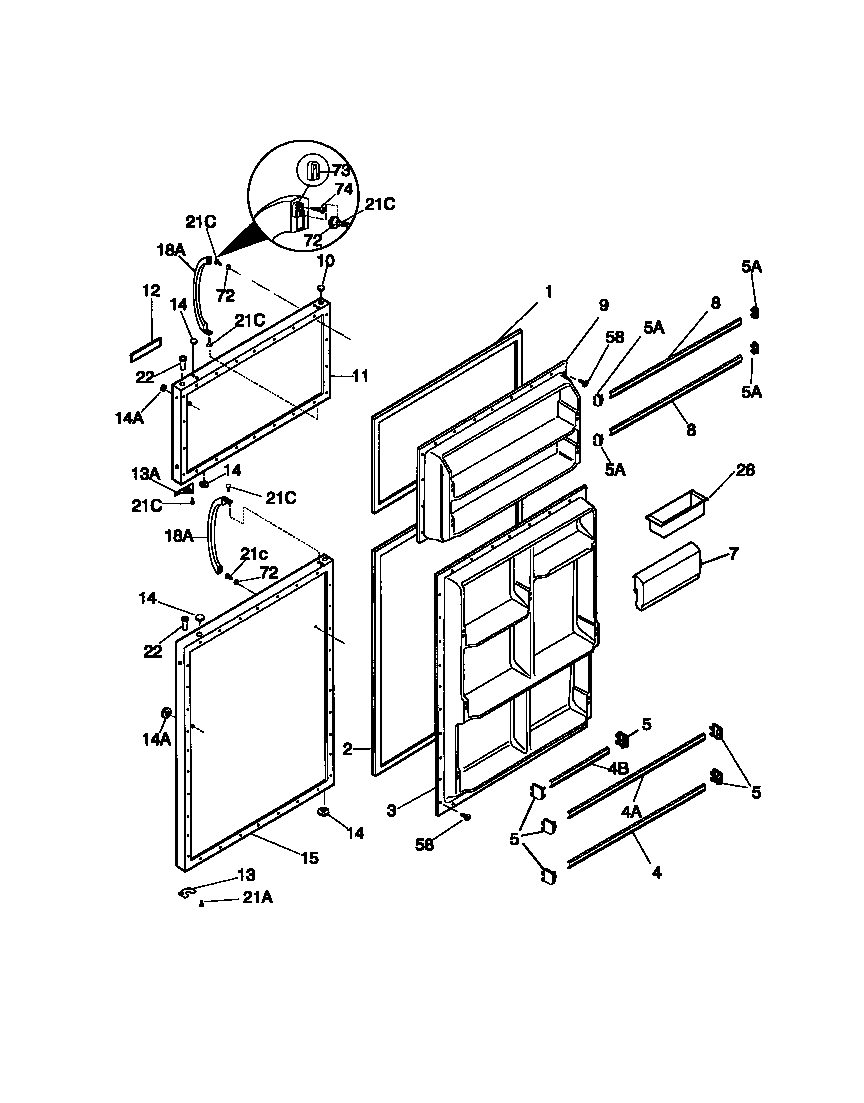

WRT21NRCY0 02 – DOOR

WRT21NRCY0 02 – DOOR

Written by

in

WRT21NRCY0 02 – DOOR

Products

PositionProduct
NI218252201 Frigidaire Refrigerator Screw
NIMAGNET-NAMEPLATE (NOT ILLUSTRATED)
NIWCI 215220339
NIPLUG-BUTTON, ALMOND, REFR DOOR FRONT, UPPER
*87720INSULATION
1WCI 215608903
2WCI 215732403
3WCI 215393201
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5A215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 215058112
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 215530301
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917609
12WCI 218409402
13AWCI 218249002
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917624
18WCI 218428102
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
585304455651 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
