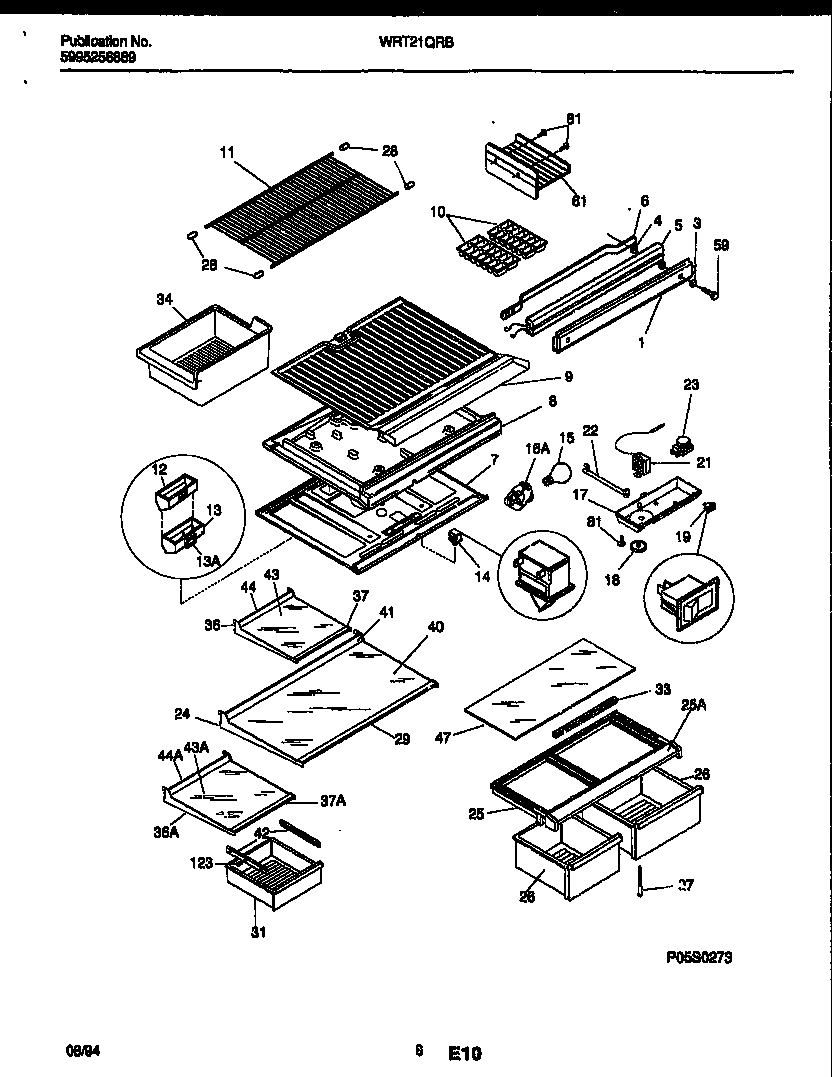

WRT21QRBD0 05 – SHELVES AND SUPPORTS

WRT21QRBD0 05 – SHELVES AND SUPPORTS

Written by

in

WRT21QRBD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
NI3205266 Frigidaire Refrigerator Edge Protector
NIWCI 5303001260
NIHANGER-PAN/BASKET, RH
NI5303001449 Frigidaire Refrigerator Seal
NIWCI 5303001380
NINUT, ANCHOR (NI)
NIWCI 5303304713
NI5304455649 Frigidaire Refrigerator Screw
NIHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
NI218513300 Frigidaire Refrigerator Compressor Mount Grommet
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 218188100
5WCI 5303210351
6WCI 5308010008
7WCI 3019038
8WCI 5303019039
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303288243
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303018894
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919118
25WCI 5303206538
25AWCI 5303280075
26PAN-CRISPER
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29TRIM-SHELF, 26.80“, FRONT
31WCI 5303304710
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
36WCI 215919116
36AFRAME-HALF SHELL, CANTILEVER W/HANGER TABS
37AWCI 215919710
37WCI 215919711
40GLASS-FULL SHELF
41WCI 215919805
42HANGER-PAN/BASKET, LH
43WCI 215723547
43AWCI 215723544
44TRIM-GLASS SHELF,13.07“ ,REAR
44AWCI 215919810
47WCI 5303209283
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
