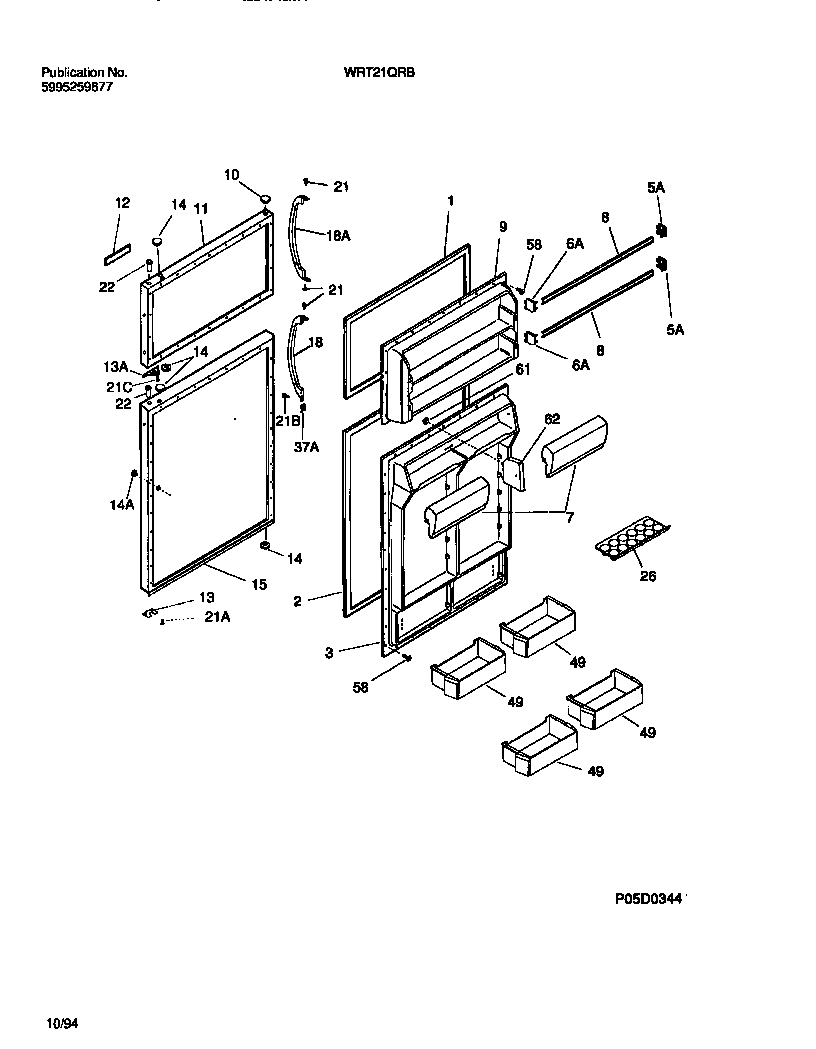

WRT21QRBD1 02 – DOOR

WRT21QRBD1 02 – DOOR

Written by

in

WRT21QRBD1 02 – DOOR

Products

PositionProduct
NIWCI 5303304712
NIWCI 215894100
NIFRAME – NAMEPLATE,WHITE
NIWCI 215220310
NITAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
1WCI 215608903
3WCI 5303275674
5A3206165 Frigidaire Bar Endcap Right Hand
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7WCI 5303284478
8WCI 215806316
9WCI 5303206631
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917380
12WCI 215366311
13AWCI 218249002
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 215352211
15WCI 5303917403
18AWCI 215915542
18WCI 215915544
21B154518001 Frigidaire Refrigerator Screw
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
21C218252201 Frigidaire Refrigerator Screw
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480204
49WCI 5303304711
585304455651 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
