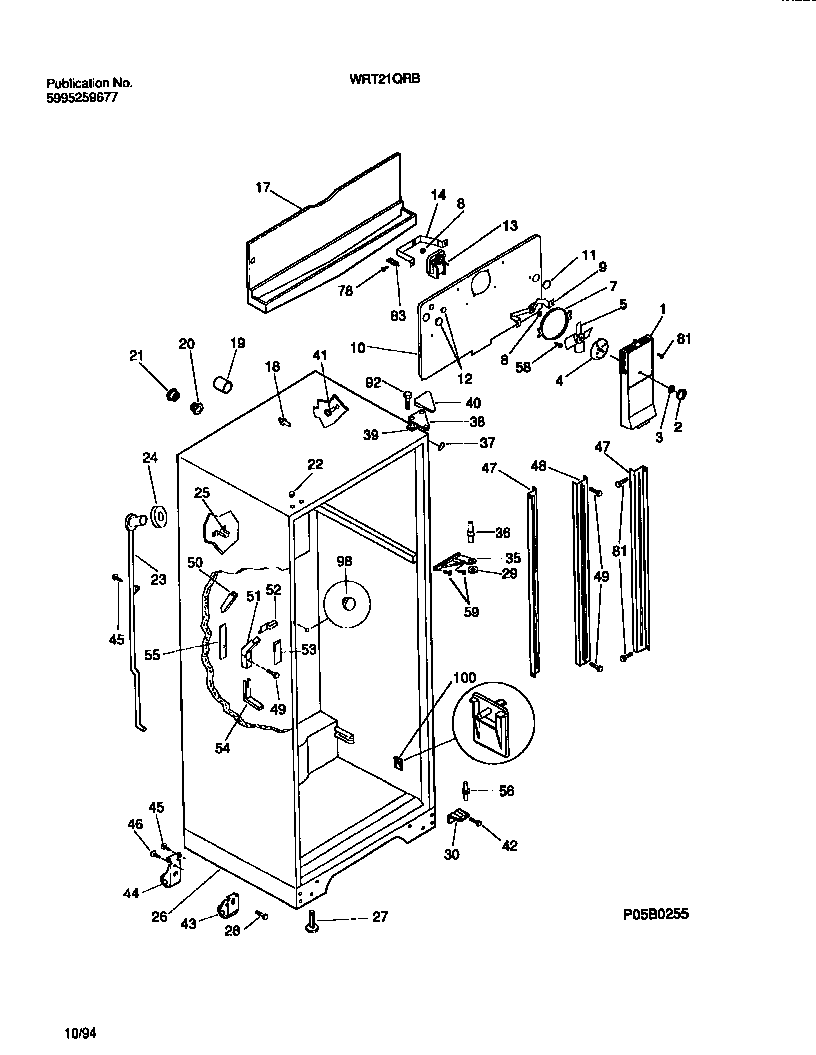

WRT21QRBD1 03 – CABINET W/FAN ASSEMBLY

Products

PositionProduct
NITAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
NITAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
NITAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
NITOUCH, UP PAINT, ALMOND (NI)
NIWCI 215079100
NIPLUG, BUTTON, CABINET LINER (NI)
NIWCI 5303209636
NI5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
NIWCI 5303001361
1WCI 5303300040
2WCI 5303299978
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10COVER, COIL
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23WCI 5303210377
24WCI 5303207353
25WCI 5308000056
26WCI 5303212487
27Screw-leveling,(2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WASHER, .34 X .62 X .05, NYLON
30WCI 218220200
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, ALMOND
38BRACKET-UPPER HINGE
39SHIM – UPPER HINGE
40COVER-UPPER HINGE, ALMOND
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 5303212490
44WCI 5308009773
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 215789000
48WCI 5303292395
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
50INSULATION-AIR DUCT, UPPER
51WCI 3203820
52CONTROL-DAMPER, MEAT KPR DUCT
53WCI 215508600
54DUCT-MEAT KEEPER, LOWER
55INSULATION-AIR DUCT, LOWER
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
