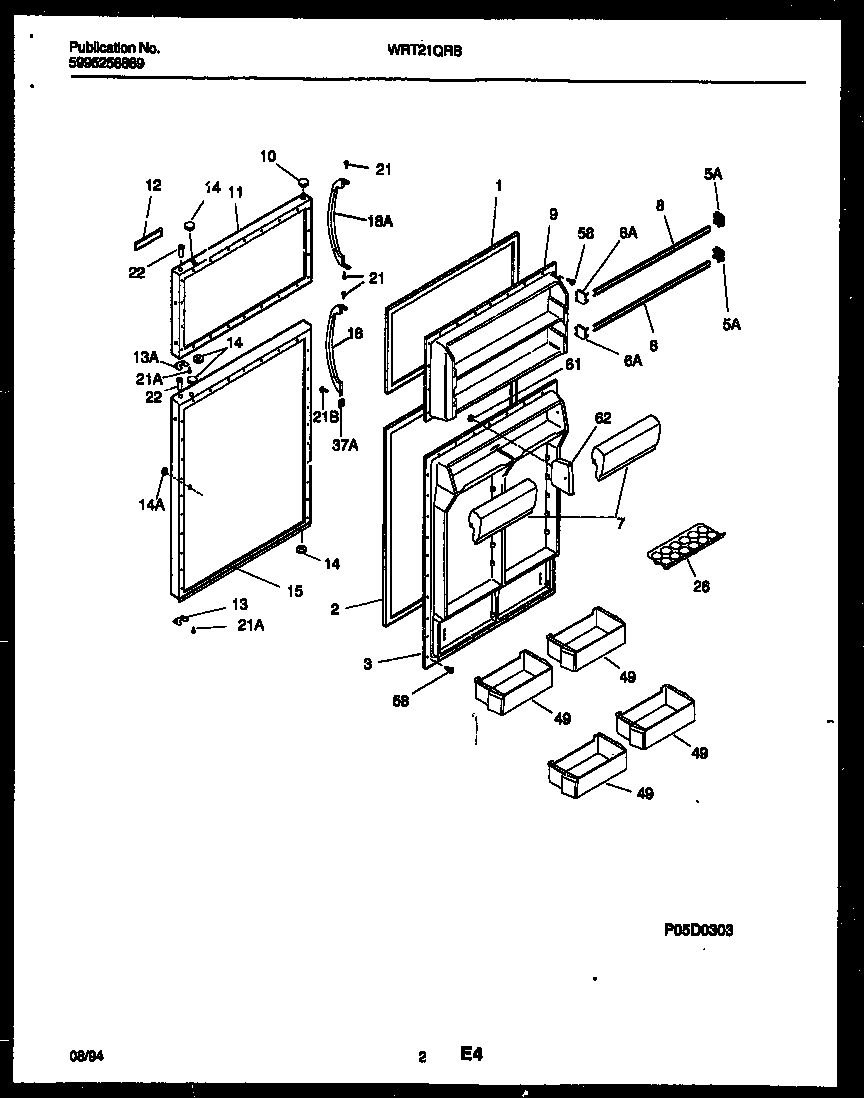

WRT21QRBW0 02 – DOOR PARTS

Products

PositionProduct
NIINSULATION
NIWCI 215894100
NILABEL-NAMEPLATE, GREY/WHITE ITRS (NON-ILLUSTRATED)
NITAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
NIWCI 5303304712
1WCI 215608913
2WCI 215732413
3WCI 5303275674
5A3206165 Frigidaire Bar Endcap Right Hand
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7WCI 5303284478
8WCI 215806316
9WCI 5303206631
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917379
12FRAME – NAMEPLATE,WHITE
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917402
18WCI 215915504
18AWCI 215915502
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21B154518001 Frigidaire Refrigerator Screw
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480205
49WCI 5303304711
585304455651 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
