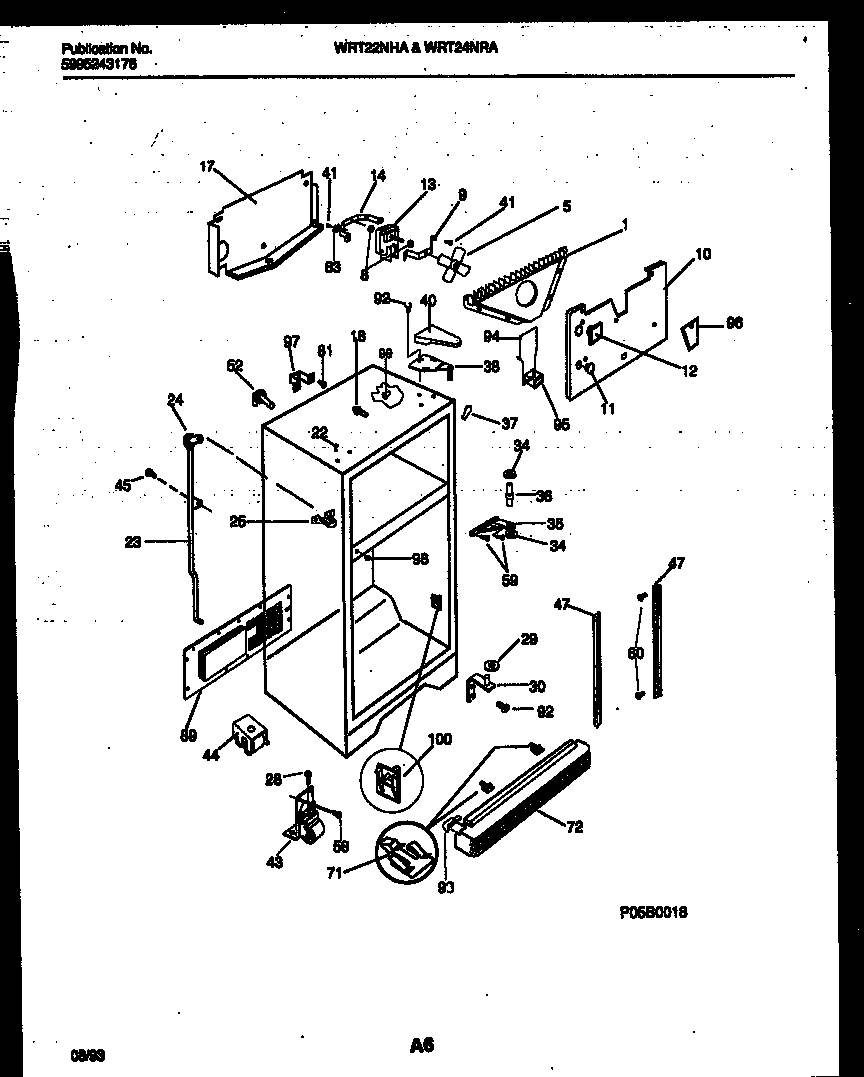

WRT22NHAW0 04 – CABINET PARTS

WRT22NHAW0 04 – CABINET PARTS

Written by

in

WRT22NHAW0 04 – CABINET PARTS

Products

PositionProduct
NISCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
NITAPPING PLATE, RH (NOT ILLUSTRATED)
NI215474201 Frigidaire Refrigerator Washer
NITAPPING PLATE, LH (NOT ILLUSTRATED)
NISCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
NIPLUG-WTR INLET TUBE
NIWCI 5303001361
NIPLUG, BUTTON, CABINET LINER (NI)
NIGROMMET-SHELF MTG,.69“ LONG
1WCI 5303292399
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303294238
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22215774901 Frigidaire Refrigerator Button Plug
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
28WCI 5303289062
29WCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34WCI 215095400
35WCI 215002601
36WCI 215095900
37TRIM-CABINET CORNER, WHITE
38WCI 5303292368
40WCI 5303288945
415308000039 Frigidaire Refrigerator Screw
43WCI 5303289059
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 5303292394
52WCI 5303289294
59WCI 215097000
605304455852 Frigidaire Refrigerator Screw
71WCI 215003300
72WCI 215362901
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 215327101
94WCI 5303292669
95WCI 215338900
96WCI 215775900
97WCI 5303289299
98215099701 Frigidaire Refrigerator Button Plug
99GROMMET-SHELF MTG,1.25“ LONG
100SUPPORT-PAN COVER
