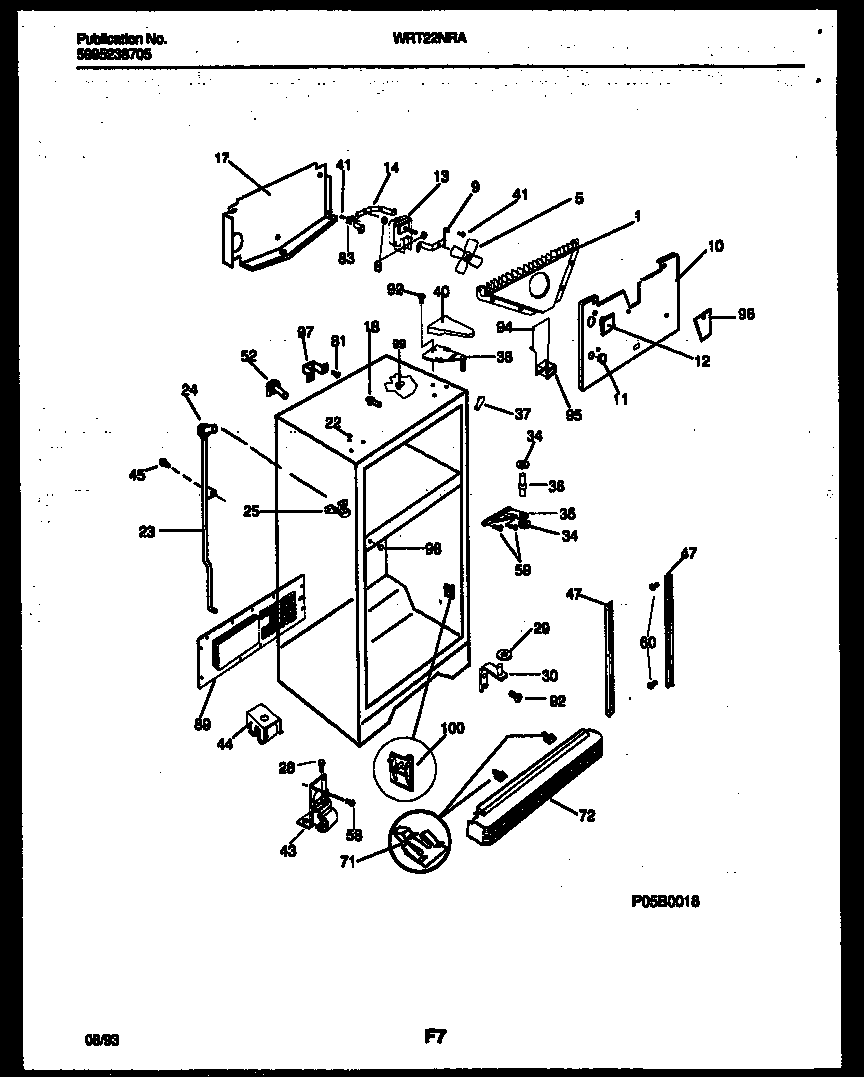

WRT22NRAD0 03 – CABINET PARTS

Products

Position	Product
NI	SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
NI	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
NI	WCI 5303001361
NI	PLUG, BUTTON, CABINET LINER (NI)
NI	TAPPING PLATE, LH (NOT ILLUSTRATED)
NI	PLUG-WTR INLET TUBE
NI	GROMMET-SHELF MTG,.69“ LONG
NI	TAPPING PLATE, RH (NOT ILLUSTRATED)
NI	215474201 Frigidaire Refrigerator Washer
1	WCI 5303292399
5	WCI 5303292398
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 5303294238
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303292393
13	5300158289 Frigidaire Evaporator Fan Motor
14	240438003 Frigidaire Refrigerator Bracket & Bushing
17	WCI 5303292408
18	SUPPORT – EVAP COVER, (2)
22	WCI 215134511
23	WCI 215266301
24	WCI 5303207353
25	WCI 5303292412
28	WCI 5303289062
29	WCI 215003200
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34	WCI 215095400
35	WCI 215002611
36	WCI 215095900
37	TRIM-CABINET CORNER, ALMOND
38	WCI 5303292368
40	WCI 5303288946
41	5308000039 Frigidaire Refrigerator Screw
43	WCI 5303289059
44	WCI 215163900
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 5303292394
52	WCI 5303289294
59	WCI 215097000
60	5304455852 Frigidaire Refrigerator Screw
71	WCI 215003300
72	WCI 215362911
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
89	WCI 5303288947
92	241710601 Frigidaire Refrigerator Screw
94	WCI 5303292669
95	WCI 215338900
96	WCI 215775900
97	WCI 5303289299
98	PLUG-BUTTON, ALMOND, CTR HINGE HOLE
99	GROMMET-SHELF MTG,1.25“ LONG
100	SUPPORT-PAN COVER
