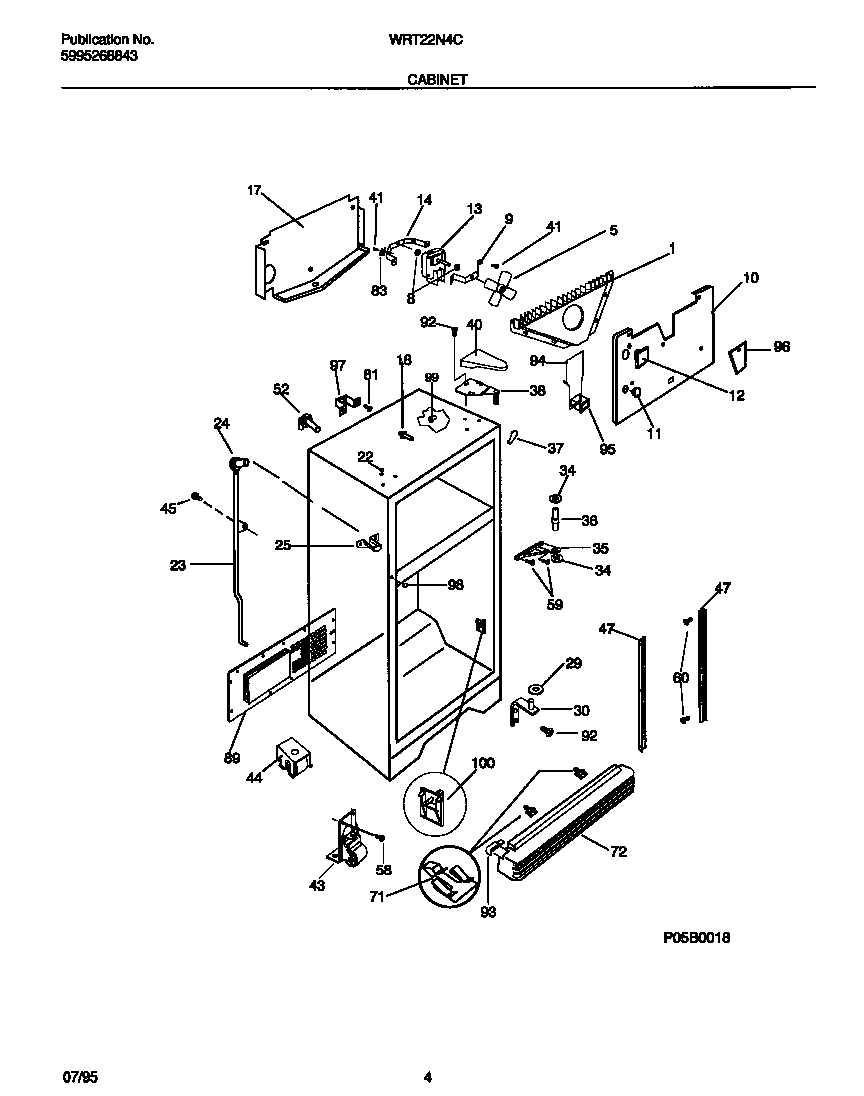

WRT22NRCW0 03 – CABINET

WRT22NRCW0 03 – CABINET

Written by

in

WRT22NRCW0 03 – CABINET

Products

PositionProduct
NISCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
NISCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
NIWCI 5303001361
*51563PLUG, BUTTON, CABINET LINER (NI)
NIGROMMET-SHELF MTG,.69“ LONG
NI215474201 Frigidaire Refrigerator Washer
NITAPPING PLATE, RH (NOT ILLUSTRATED)
NITAPPING PLATE, LH (NOT ILLUSTRATED)
NISEAL-AIR DUCT COVER
*515625303321319 Frigidaire Refrigerator White Touch Up Paint
NIPLUG-WTR INLET TUBE
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303294238
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
29WCI 215003200
30WCI 218150800
34WCI 215095400
35WCI 215002601
36WCI 215095900
37TRIM-CABINET CORNER, WHITE
38WCI 218158000
40WCI 5303288945
415308000039 Frigidaire Refrigerator Screw
43WCI 218615300
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
71WCI 215003300
72WCI 215362901
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 215327101
94WCI 5303292669
95WCI 215931300
96WCI 215775900
97WCI 5303289299
98215099701 Frigidaire Refrigerator Button Plug
99GROMMET-SHELF MTG,1.25“ LONG
100SUPPORT-PAN COVER
