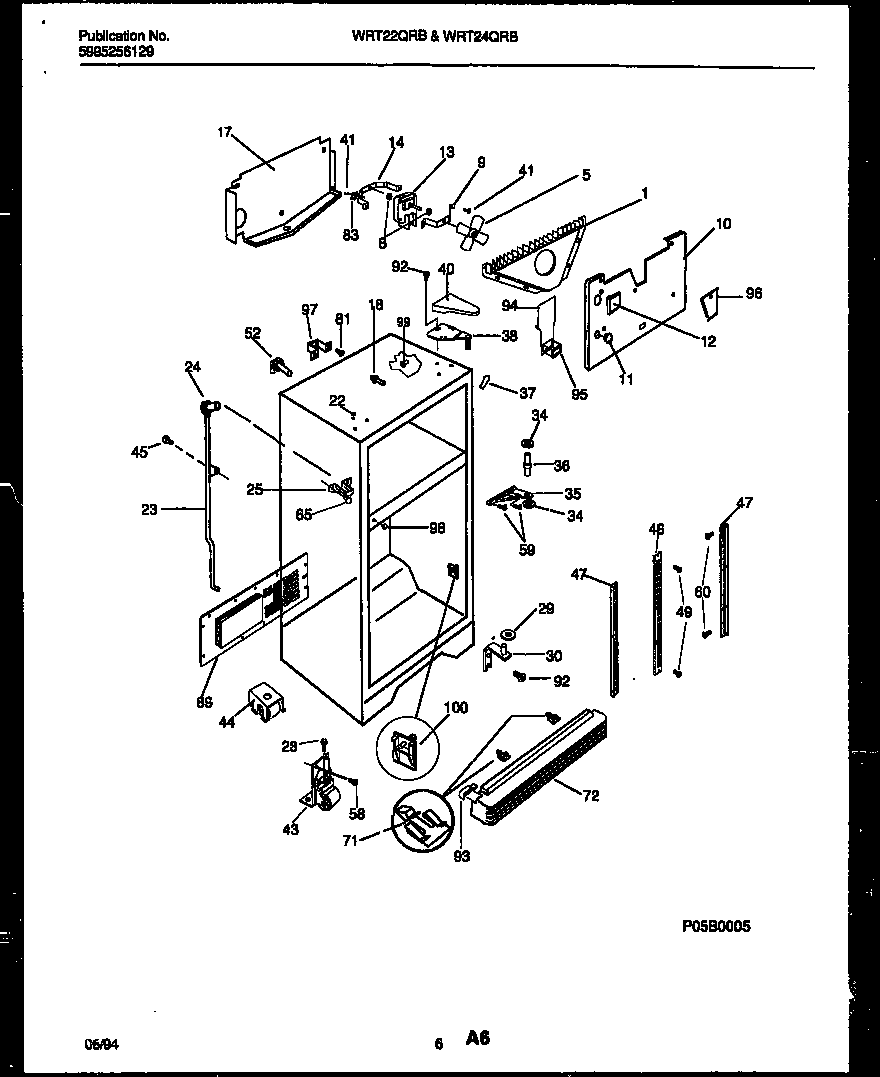

WRT22QRBW0 04 – CABINET PARTS

Products

Position	Product
NI	PLUG-WTR INLET TUBE
NI	215474201 Frigidaire Refrigerator Washer
NI	TAPPING PLATE, RH (NOT ILLUSTRATED)
NI	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
1	WCI 215937600
5	WCI 5303292398
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 5303294238
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303292393
13	5300158289 Frigidaire Evaporator Fan Motor
14	240438003 Frigidaire Refrigerator Bracket & Bushing
17	WCI 5303292408
18	SUPPORT – EVAP COVER, (2)
22	215774901 Frigidaire Refrigerator Button Plug
23	WCI 215266301
24	WCI 5303207353
25	WCI 5303292412
28	WCI 5303289062
29	WCI 215003200
30A	TAPPING PLATE, LH (NOT ILLUSTRATED)
30	WCI 218150800
34	WCI 215095400
35	WCI 215002601
36	WCI 215095900
37	TRIM-CABINET CORNER, WHITE
38	WCI 218158000
40	WCI 5303288945
41	5308000039 Frigidaire Refrigerator Screw
43	WCI 5303289059
44	WCI 215163900
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 5303292394
48	WCI 5303292395
49	SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
52	WCI 5303289294
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60	5304455852 Frigidaire Refrigerator Screw
65	WCI 5303001361
