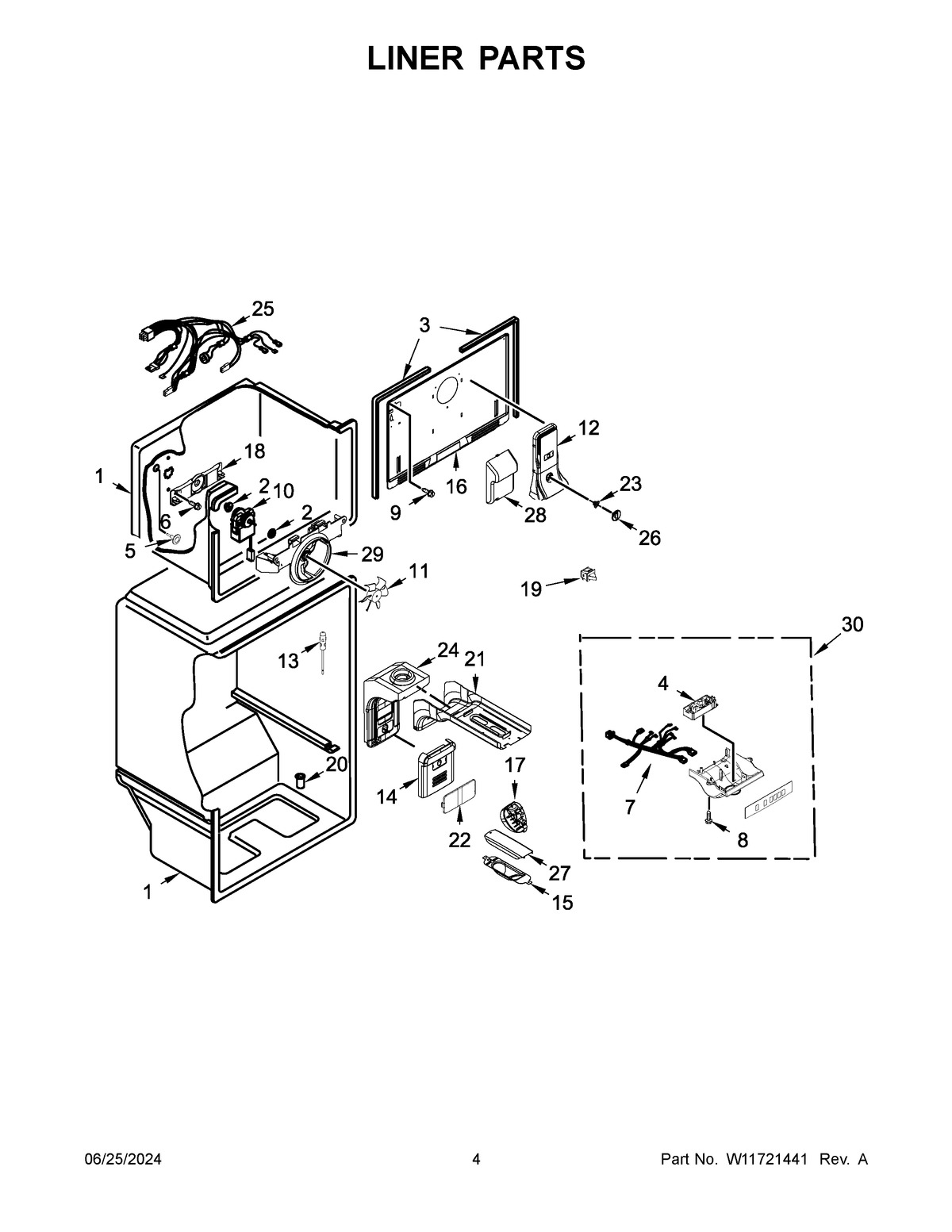

WRT311FZDB04 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT SERVICED)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	W11613574-includeCORE Whirlpool W11613574 Refrigerator Electronic Control Board + Core
5	WP941839 Whirlpool Refrigerator Button Plug
6	WP488163 Whirlpool Refrigerator Screw
7	W11441783 Whirlpool Refrigerator Wire Harness
8	WP489174 Whirlpool Refrigerator Screw
9	WPW10142283 Whirlpool Refrigerator Screw
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W11126274 Whirlpool Refrigerator Air Tower
13	WPW10384183 Whirlpool Thermistor
14	W10609502 Whirlpool Refrigerator Cover
15	W10300161 Whirlpool Refrigerator Shield
16	COVER-EVAP
17	W11577968 Whirlpool Refrigerator LED Module
18	2254454 Whirlpool Refrigerator Bracket
19	W11727836 Whirlpool Switch
20	WP2210509 Whirlpool Refrigerator Tub Valve
21	WPW10305175 Whirlpool Refrigerator Cover
22	W10336009 Whirlpool Refrigerator Cover
23	W11206112 Whirlpool Refrigerator Control
24	W11188815 Whirlpool Refrigerator Diffuser
25	W11618502 Whirlpool Refrigerator Wire Harness
26	W11026417 Whirlpool Refrigerator Air Damper
27	WPW10348614 Whirlpool Refrigerator Cover
28	COVER
29	W10850162 Whirlpool Refrigerator Orifice
30	W11594670 Whirlpool Refrigerator Control Box
