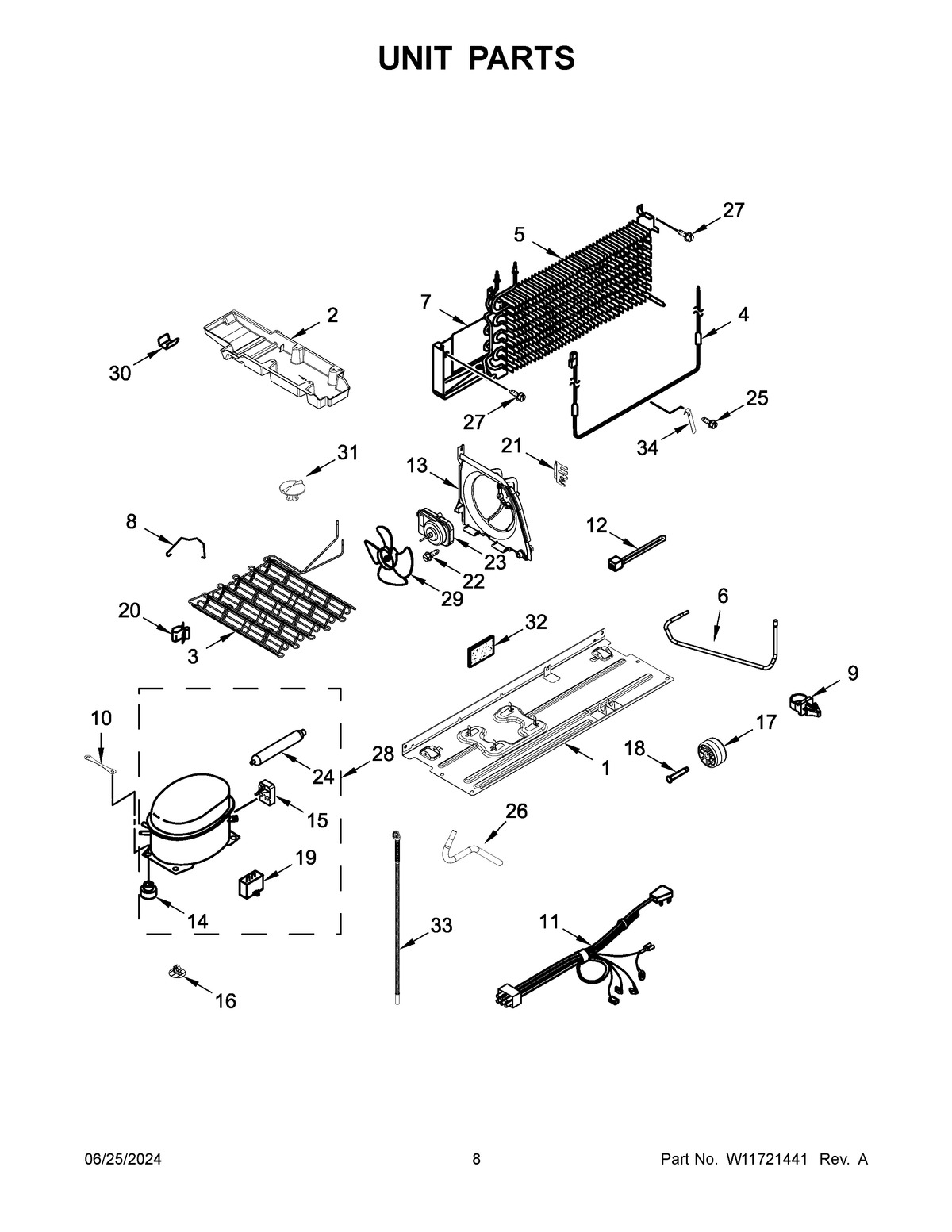

WRT311FZDB04 05 – UNIT PARTS
Written by
in
WRT311FZDB04 05 – UNIT PARTS
Products
Position
Product
NI
REFRIGERANT CHARGE 48 GRAMS (R600A)
1
W11396825 Whirlpool Plate
2
W10890667 Whirlpool Refrigerator Drip Pan
3B
W11506624 Whirlpool Refrigerator Coupler
3
W10609393 Whirlpool Refrigerator Condenser
4
W11562215 Whirlpool Refrigerator Heater
5
W11578004 Whirlpool Refrigerator Evaporator
5A
W11504450 Whirlpool Refrigerator Coupler
6
W11567980 Whirlpool Tube
7
W11562216 Whirlpool Shield
8
STRAP, BALE
9
2219077 Whirlpool Refrigerator Clip
10
W10236396 Whirlpool Refrigerator Strap
11
W11625681 Whirlpool Refrigerator Wire Harness
12
WPW10339879 Whirlpool Wire Tie
13
W11605794 Whirlpool Air Baffle
14
WPW10169124 Whirlpool Refrigerator Grommet
15
W11561262 Whirlpool Start Device
16
W10815861 Whirlpool Refrigerator Clip
17
WPW10475495 Whirlpool Roller Assembly
18
W11594405 Whirlpool Axle
19
WPW10662129 Whirlpool Refrigerator Run Capacitor
20
W10812039 Whirlpool Clip
21
BRACKET, EVAPORATOR
22
W10829281 Whirlpool Refrigerator Screw
23
W11127829 Whirlpool Refrigerator Condenser Motor
24A
W11504445 Whirlpool Refrigerator Coupler
24
W11109499 Whirlpool Refrigerator Tube
24B
W11504447 Whirlpool Refrigerator Coupler
25
WP489478 Whirlpool Refrigerator Screw
26
TUBE, PROCESS
27
WP489442 Whirlpool Refrigerator Screw
28C
COUPLER
28B
W11578570 Whirlpool Refrigerator Coupler
28
COMPRESSOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)
29
W11193484 Whirlpool Fan Blade
30
W10683556 Whirlpool Refrigerator Clip
31
WP2210509 Whirlpool Refrigerator Tub Valve
32
W11553819 Whirlpool Refrigerator Insulation
33
TU
34
HEAT PROBE
←
