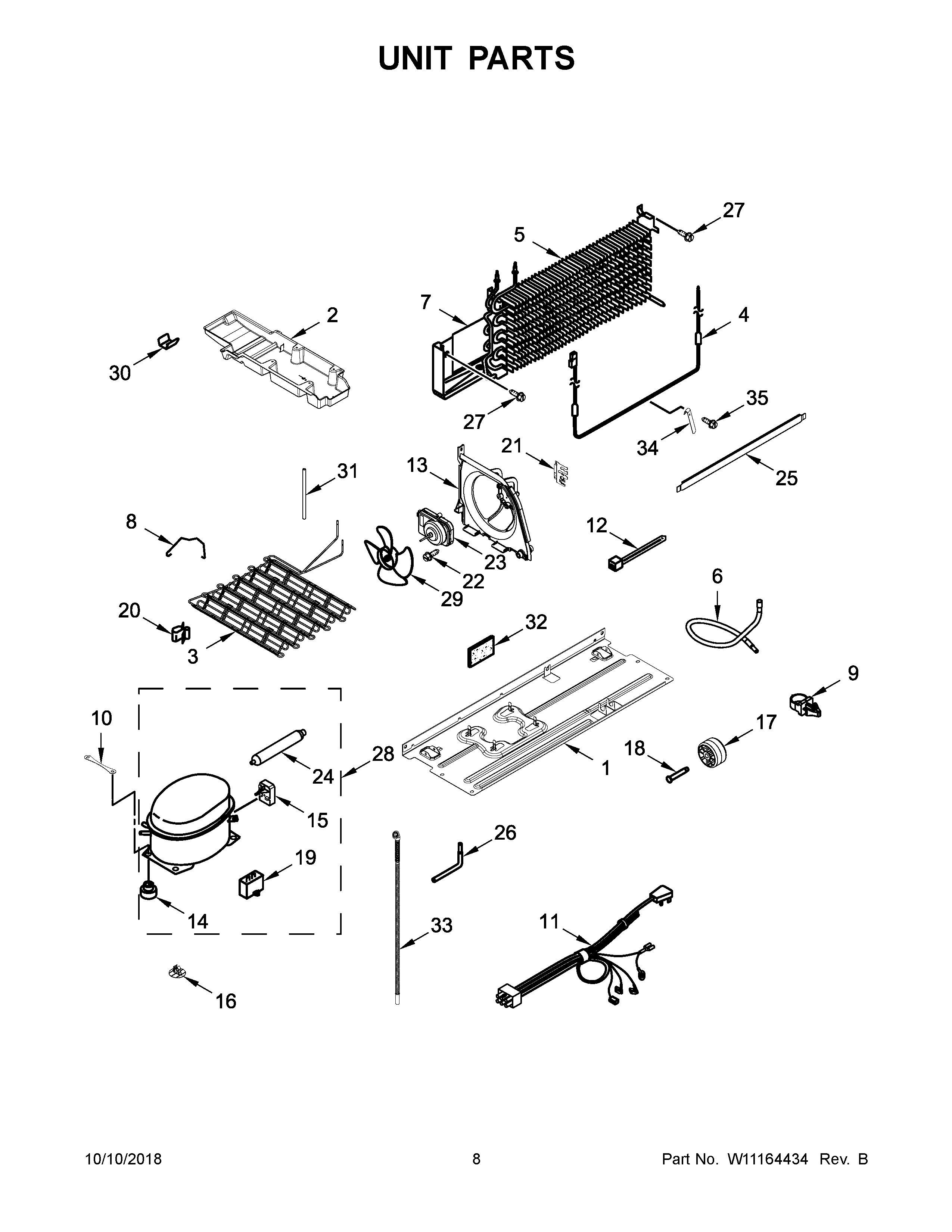

WRT311FZDM01 05 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	REFRIGERANT CHARGE 5.0 OZ. (R-134A)
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W11396825 Whirlpool Plate
2	W10890667 Whirlpool Refrigerator Drip Pan
3	W10609393 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	W10836706 Whirlpool Refrigerator Evaporator
6	W10510988 Whirlpool Refrigerator Tube
7	WPW10314195 Whirlpool Refrigerator Shield
8	W11661170 Whirlpool Clip
9	2219077 Whirlpool Refrigerator Clip
10	W10236396 Whirlpool Refrigerator Strap
11	W11625681 Whirlpool Refrigerator Wire Harness
12	WPW10339879 Whirlpool Wire Tie
13	WP2315541 Whirlpool Refrigerator Air Baffle
14	WPW10169124 Whirlpool Refrigerator Grommet
15	START-DEV
16	W10815861 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	WPW10662129 Whirlpool Refrigerator Run Capacitor
20	W10812039 Whirlpool Clip
21	W10314197 Whirlpool Refrigerator Bracket
22	W11501418 Whirlpool Refrigerator Screw
23	W11127829 Whirlpool Refrigerator Condenser Motor
24	W10843121 Whirlpool Refrigerator Tube
25	W10300902 Whirlpool Refrigerator Cover
26	W11676464 Whirlpool Tube
27	WP489442 Whirlpool Refrigerator Screw
28	WPW10507886 Whirlpool Refrigerator Compressor
29	W11193484 Whirlpool Fan Blade
30	W10683556 Whirlpool Refrigerator Clip
31	W11190084 Whirlpool Refrigerator Drain Tube
32	W11553819 Whirlpool Refrigerator Insulation
33	W10475011 Whirlpool Refrigerator Drain Tube
34	W10856574 Whirlpool Refrigerator Heat Probe
35	WP489478 Whirlpool Refrigerator Screw
